Chapter E: Basic repair procedures 2 Basic repair procedures
Technical manual Planmeca PlanMill 40 187

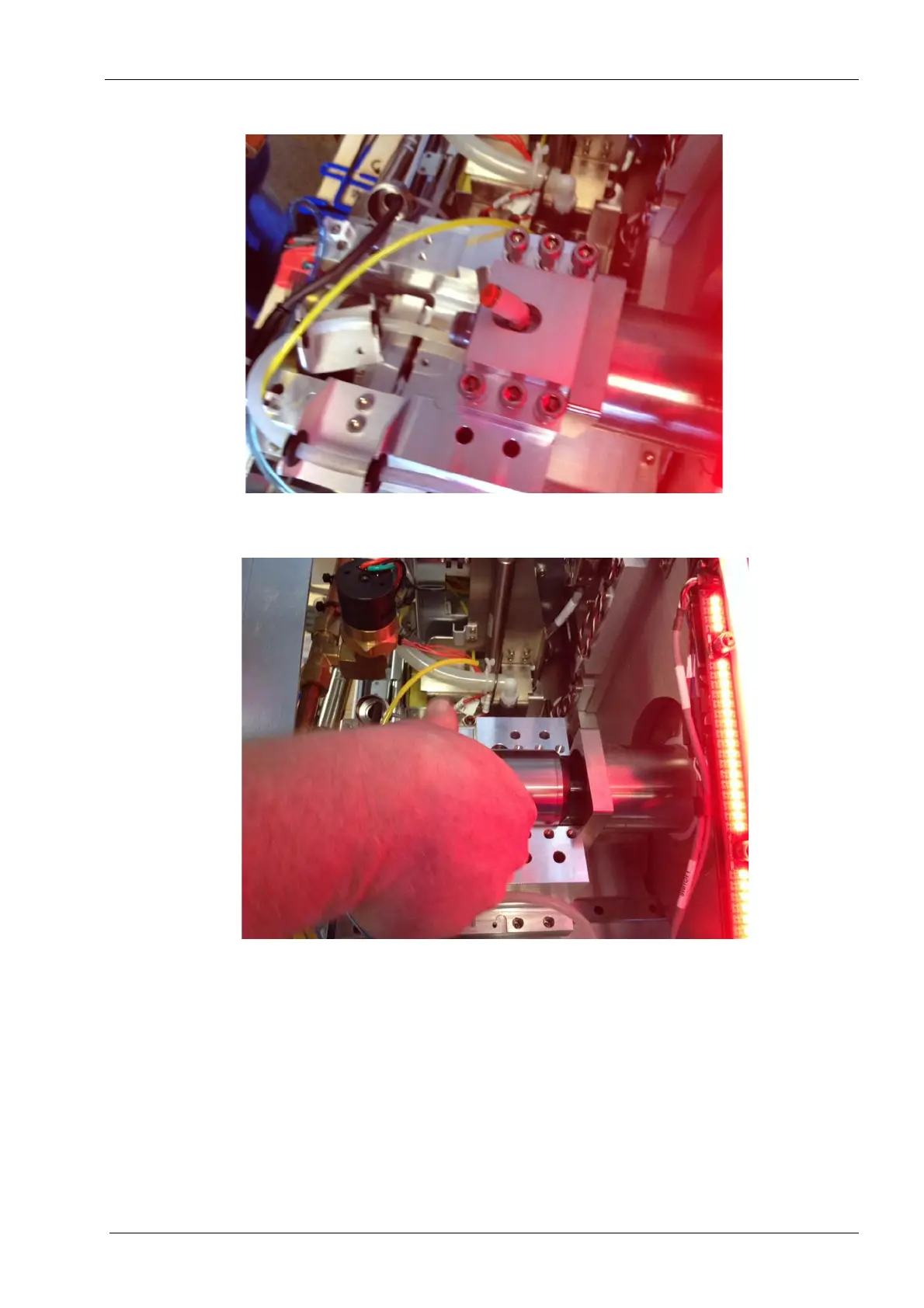

Figure 205: Slide tubing support bracket away from spindle
24. Slide the tubing support bracket away from the spindles.
Figure 206: Remove the one touch fitting
25. Remove the spindle by pulling it out of the spindle housing.
