Install

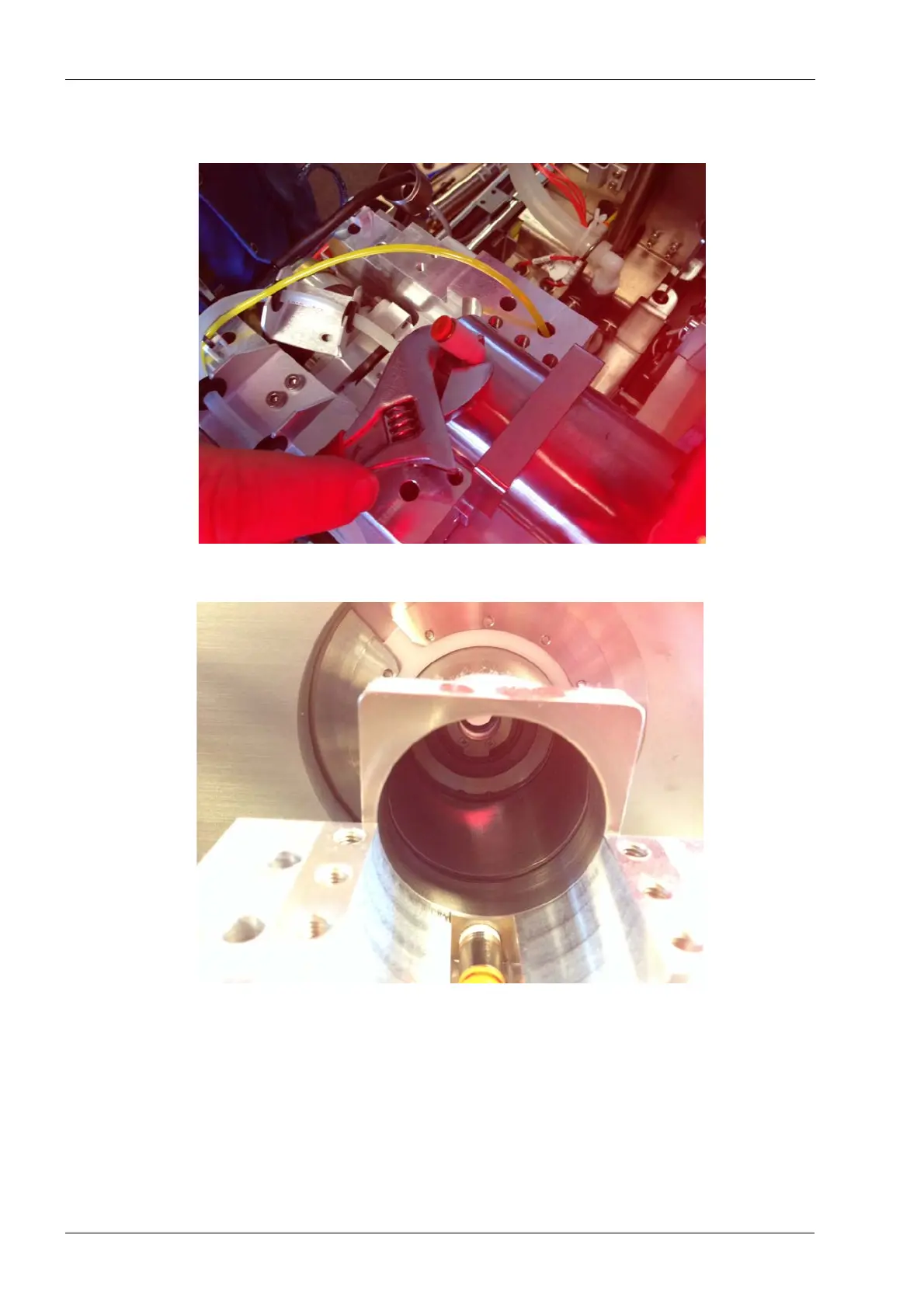

Figure 207: Attach one-touch fitting to spindle
1. Use small adjustable crescent key to attach one touch fitting to spindle.
Figure 208: Verify spindle housing O-rings are in place
2. Look inside the spindle housing and verify the two O-rings are in their respective
grooves.
3. Check that the one-fitting feeding the cooling liquid to the X-carriage is secure and
doesn't leak.
