2 Basic repair procedures Chapter E: Basic repair procedures
190 Planmeca PlanMill 40 Technical manual

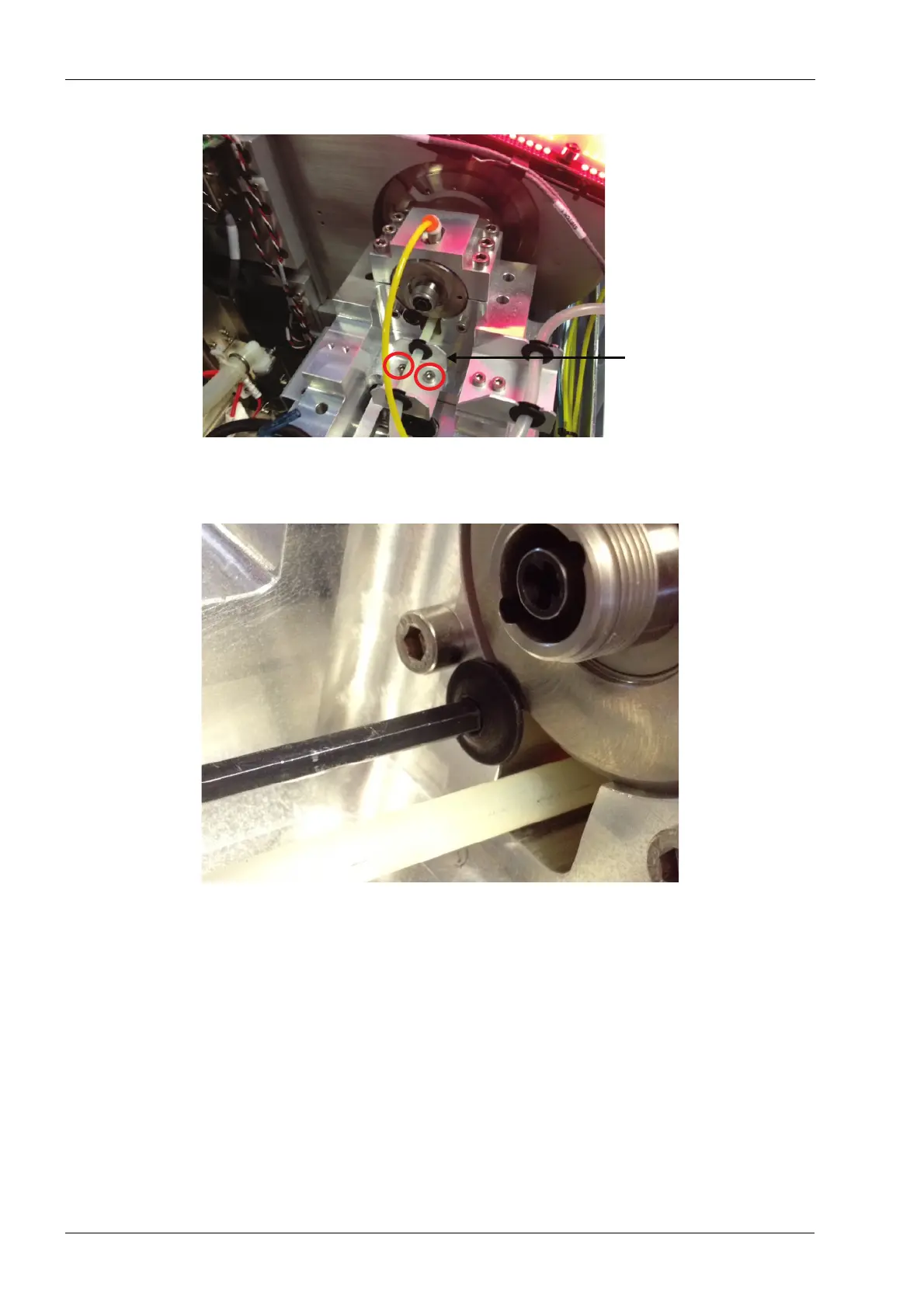

Figure 211: Silde and reattach tubing support bracket
7. Move the tubing support bracket back to its original position and install the M4 screws
to secure it. Torque the screws to 2.6 nm (23 in-lbs).
Figure 212: Seating the spindle
8. Recheck to make sure the one touch fitting is centered in the hole in the saddle cap.
9. Seat the spindle by tightening the spindle seating screw until it is flush with the
carriage.
