2 Basic repair procedures Chapter E: Basic repair procedures
192 Planmeca PlanMill 40 Technical manual

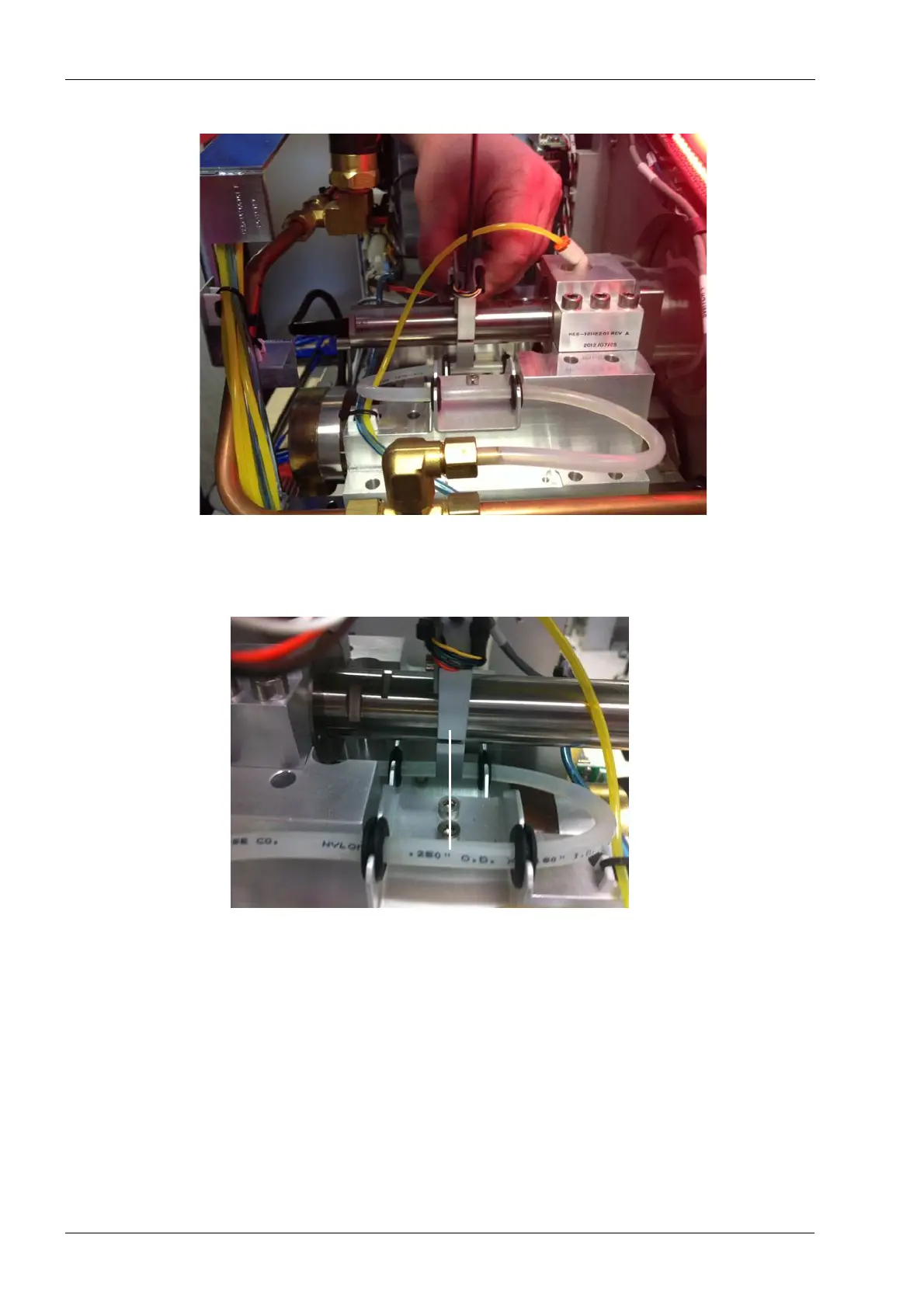

Figure 236: Install accelerometer and bracket assembly
13. Install accelerometer sensor and bracket assembly loosely on the spindle motor in the
same orientation and location as before it was removed.
• Center the mounting bracket on the centerline of the fluid tubing support bracket
which is located on the front of the carriage, see the figure below.
OR
