Printing

QL-300 User Guide 102

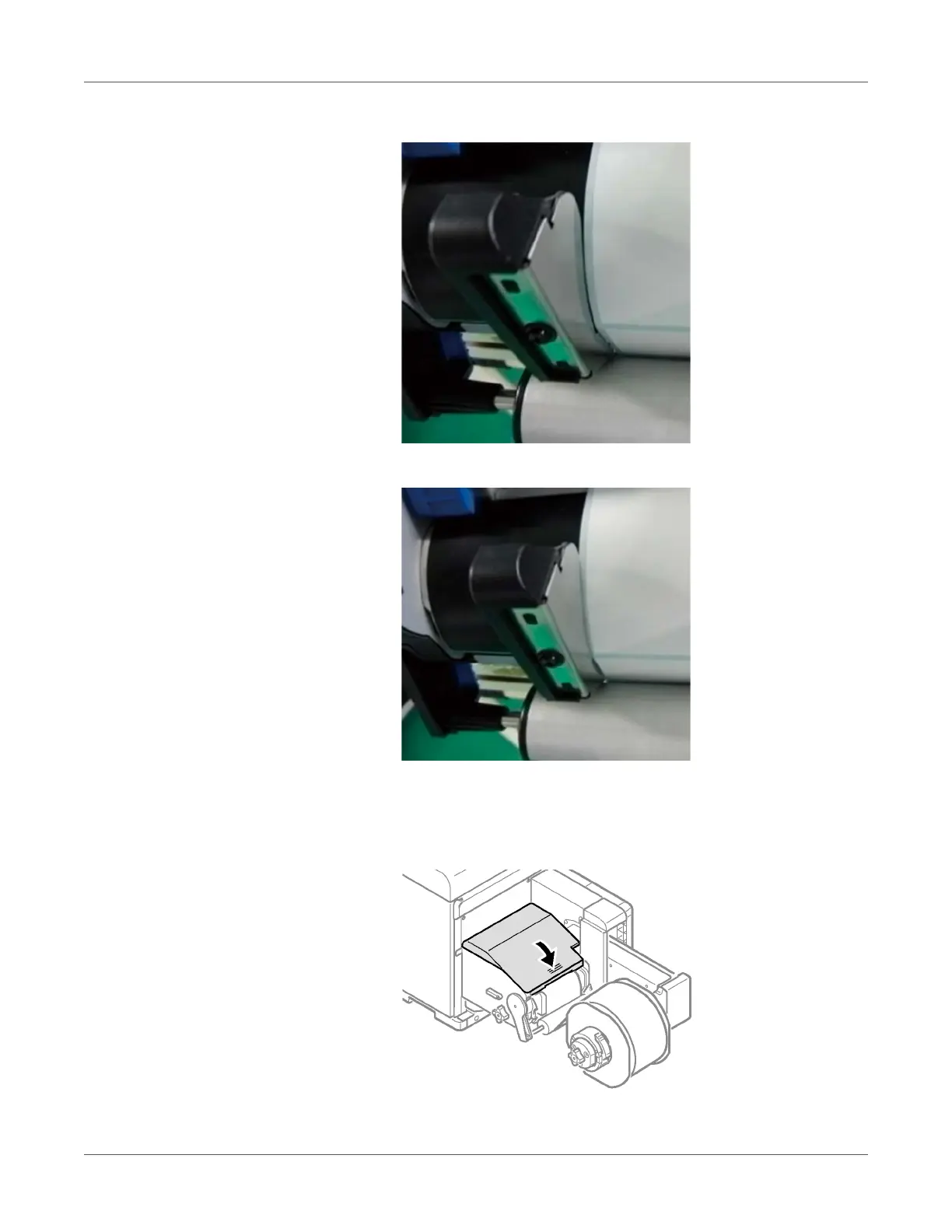

• In the following example, the Roll Paper Guide is aligned to the width of the paper.

• In the following example, the Paper Guide is too tight.

19 Close the Unwinder Cover.

Caution: When closing the Unwinder Cover, there is a risk of pinching your fingers or

hands. Press the top of the Unwinder Cover to close it.
