Printing

QL-300 User Guide 124

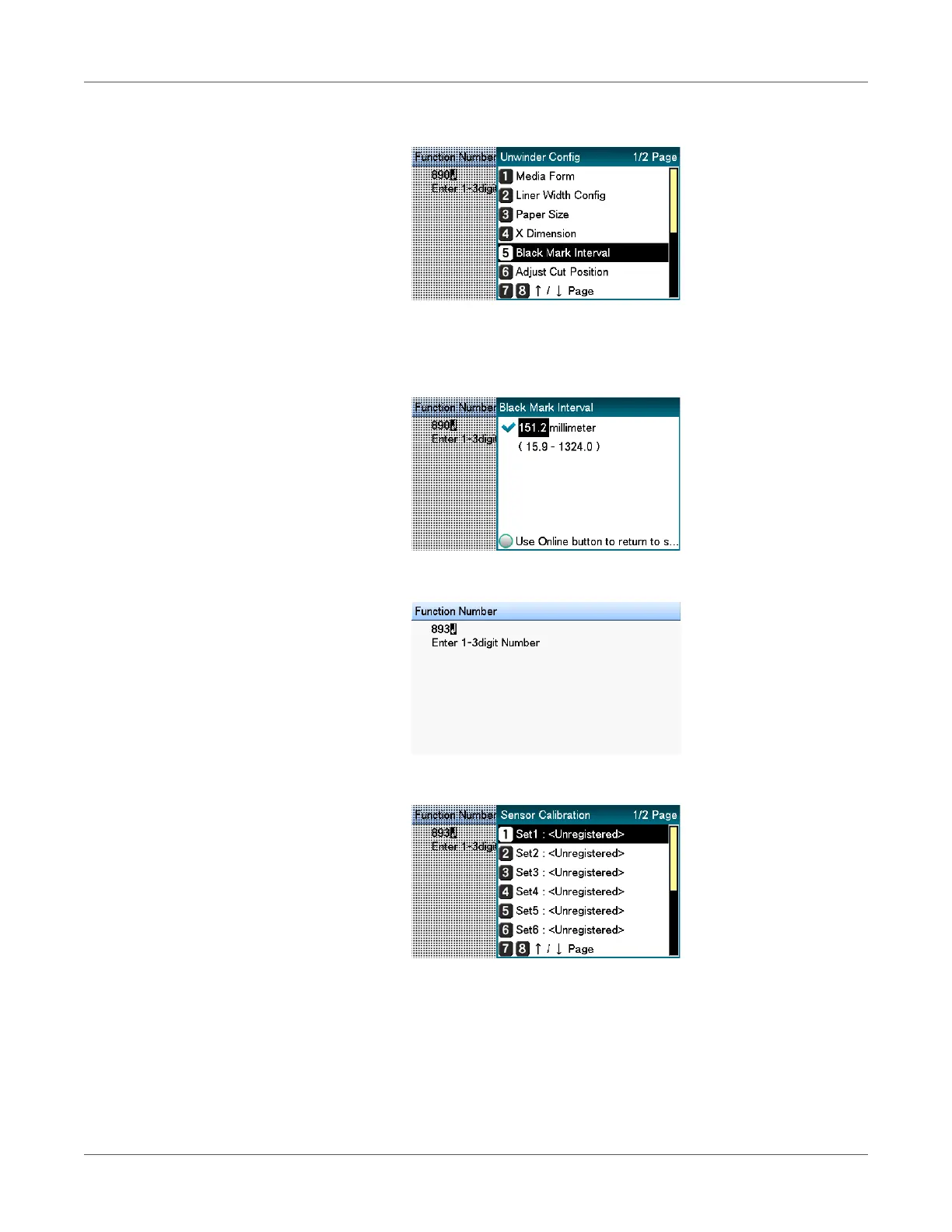

10 Select Black Mark Interval from Unwinder Config, and then press the OK button.

11 Use the numeric keypad to enter the Black Mark Interval, press the OK button, and then

press the ON LINE button.

The display will return to the standby screen.

12 Press the Fn key, and then press the following buttons: 8, 9, 3, OK.

13 Select the setting number of the sensor to be configured, and then press the OK button.
