Installation

QL-300 User Guide 21

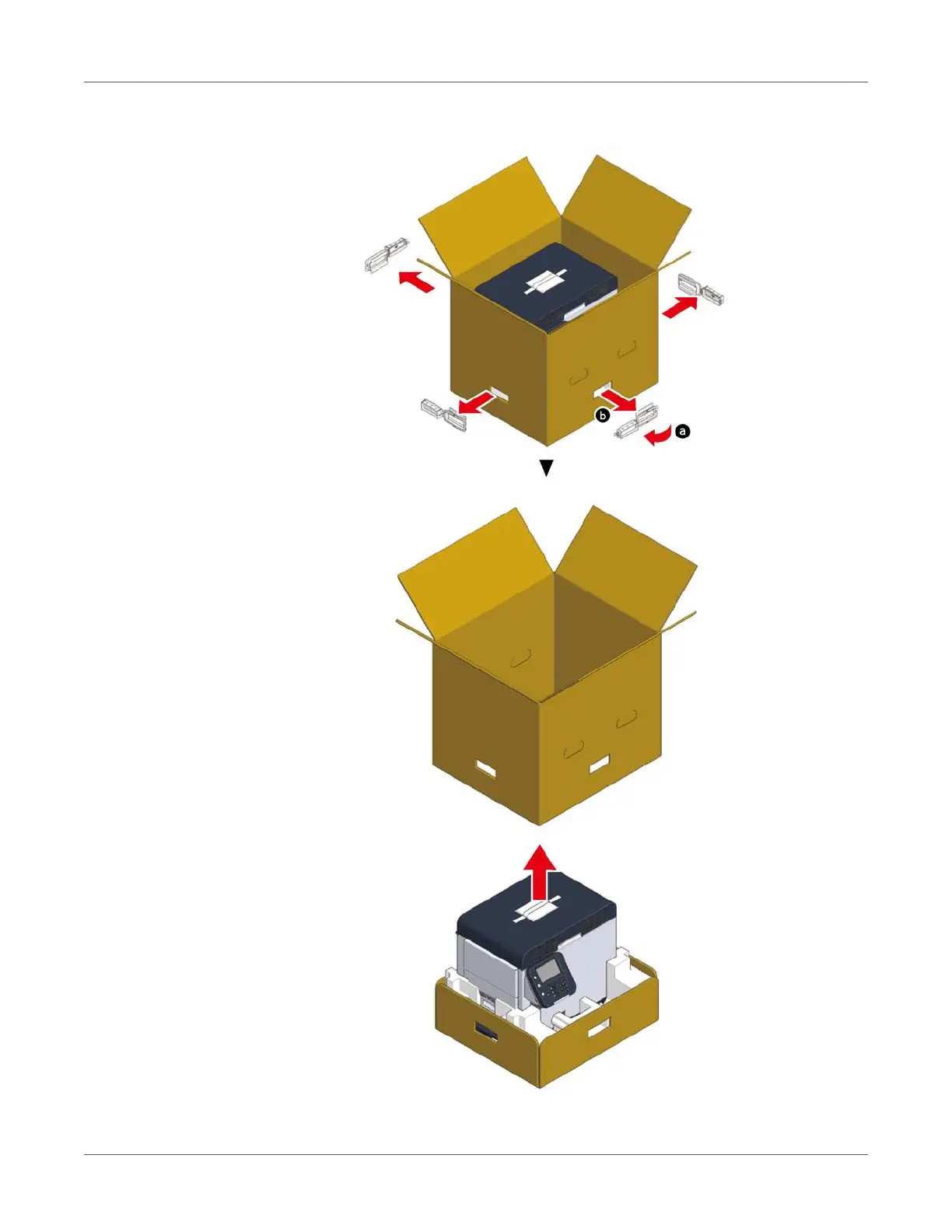

3 Remove the handles (4 pieces), and then remove the top of the packing box.
