Installation

QL-300 User Guide 22

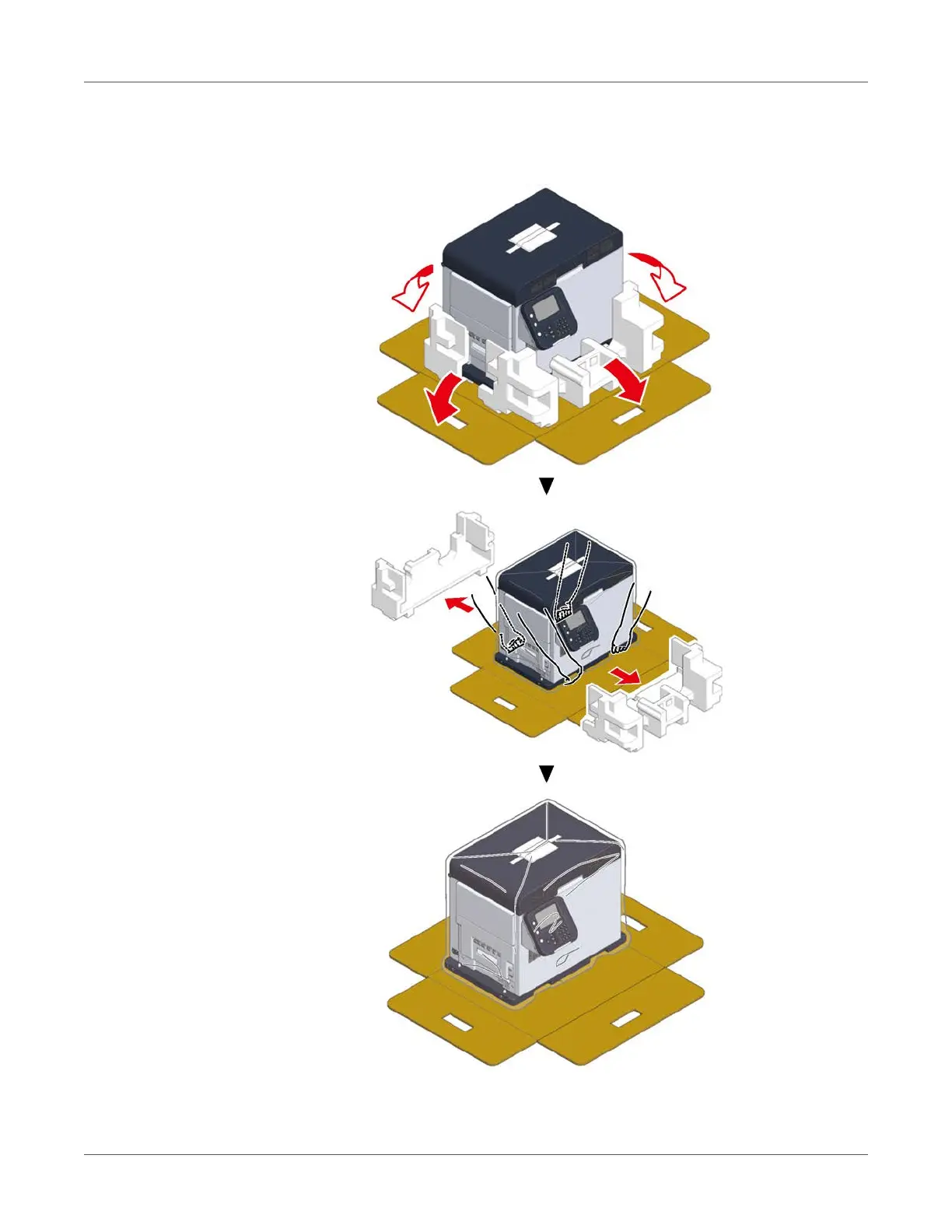

4 Open out the bottom part of the box, place your hands on the printer's handles (2 in front/2

in back) and support the printer as you remove the front and back packing materials on the

bottom.
