Installation

QL-300 User Guide 23

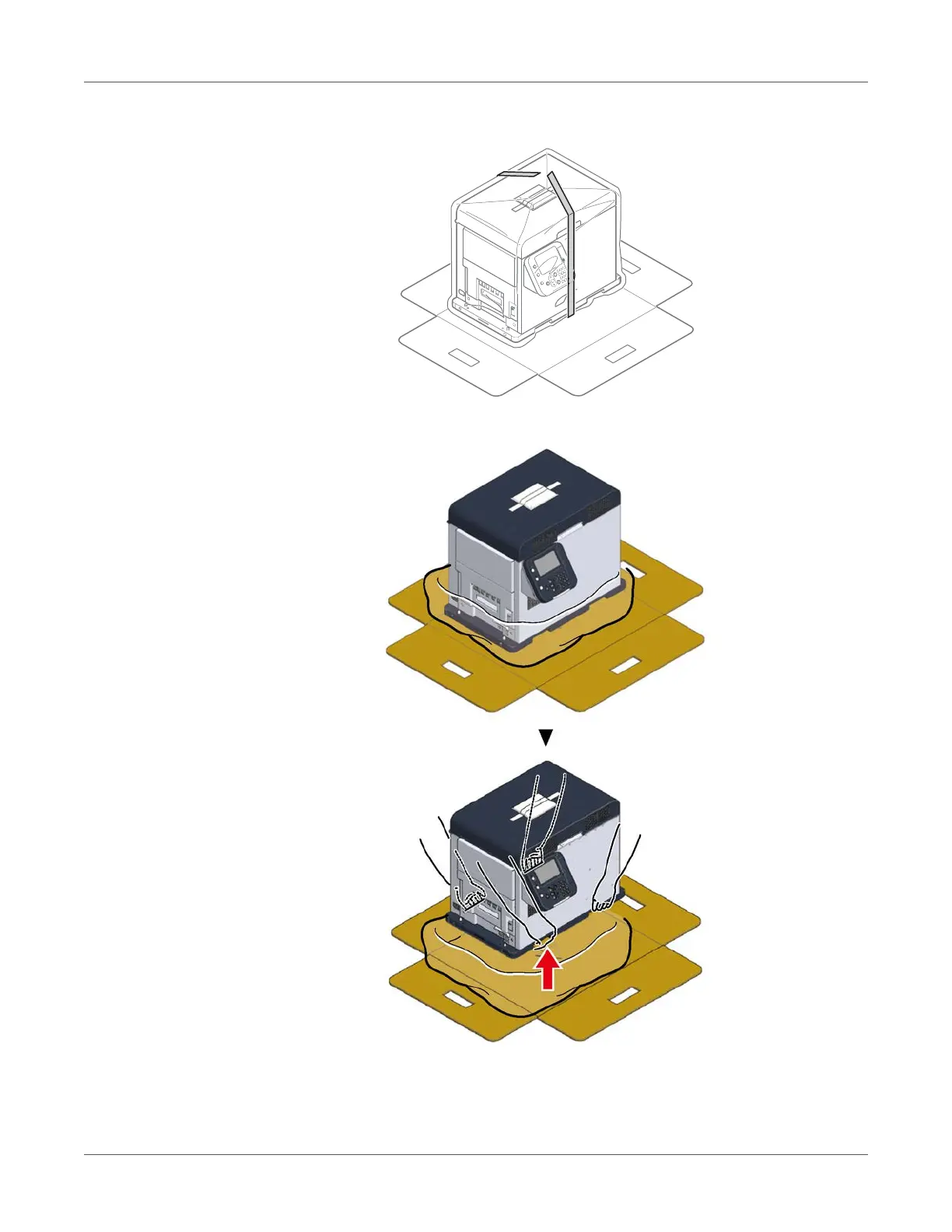

5 Cut and remove the bands that secure the printer.

6 Remove the plastic bag.
