Installation

QL-300 User Guide 24

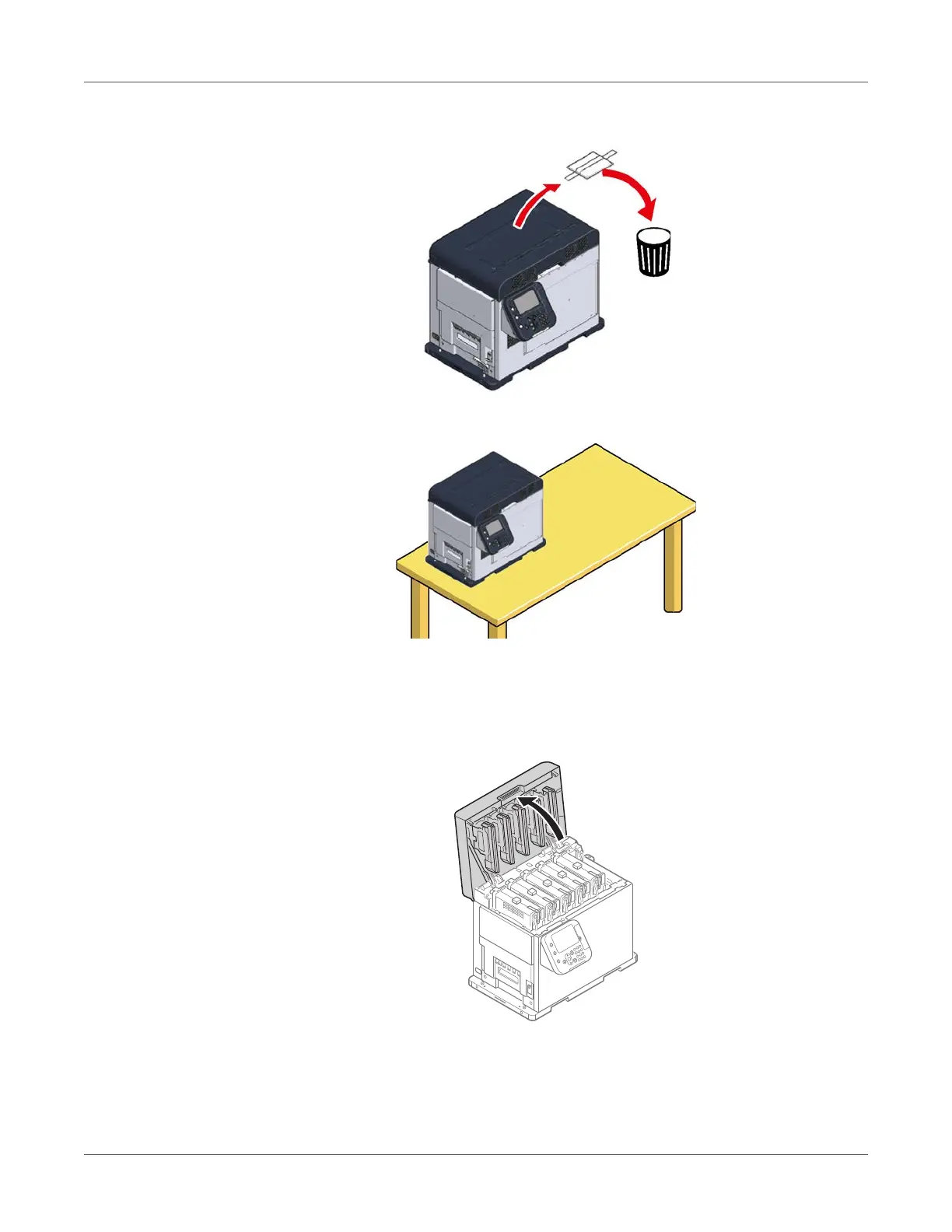

7 Remove the desiccant.

8 Place the printer in the installation space that you have confirmed in advance.

Allow enough space to work when installing the unwinder.

The weight of the equipment, including wear items, is about 95 lbs (43 kg). Install it on a

stand that is strong enough.
