Adjusting the Color

QL-300 User Guide 220

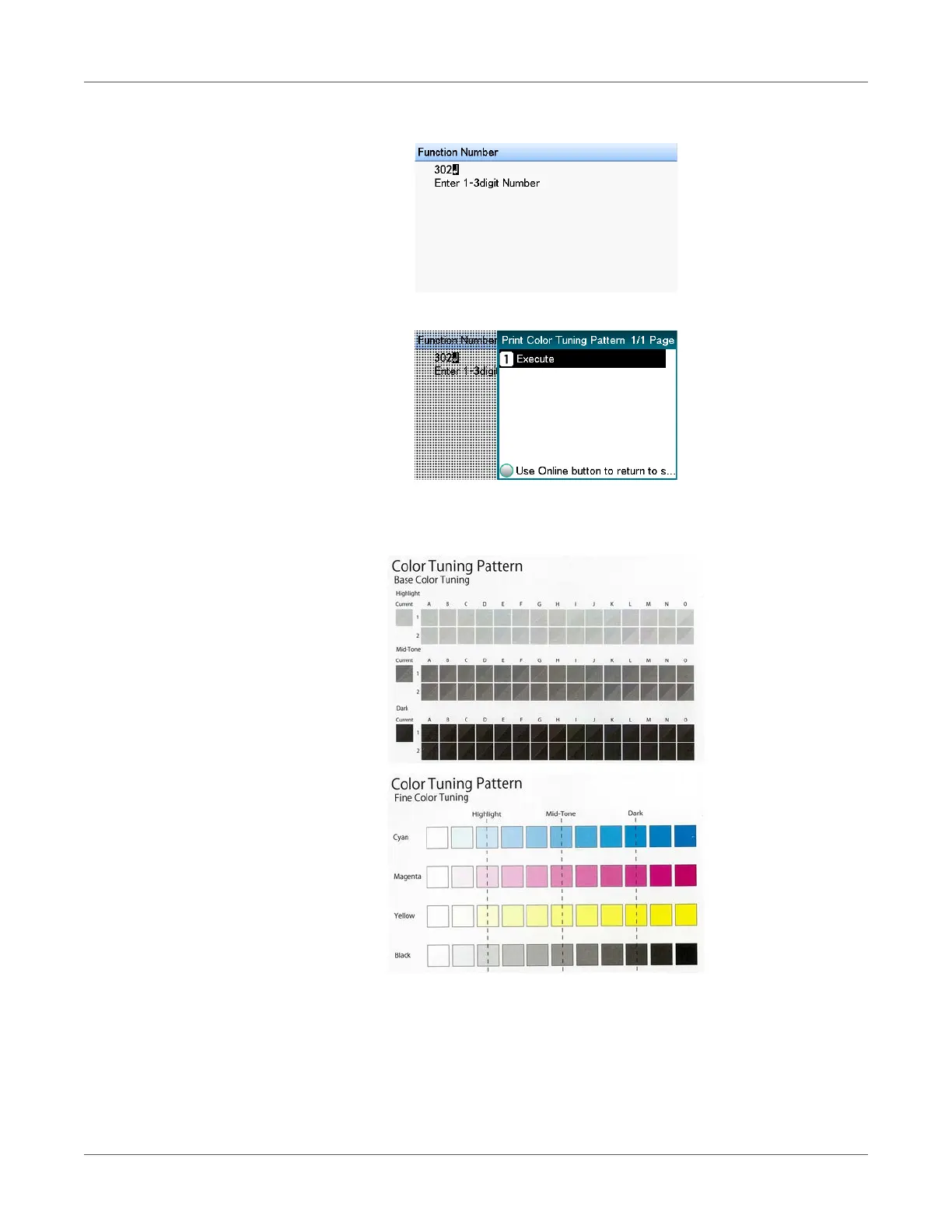

b) Press 3, 0, 2 (function numbers) and press the OK button.

c) Check that Execute has been selected, and press the OK button.

d) The color tuning pattern will be printed.

2 Use the print results for the color tuning pattern to check the current color balance.
