Troubleshooting

QL-300 User Guide 262

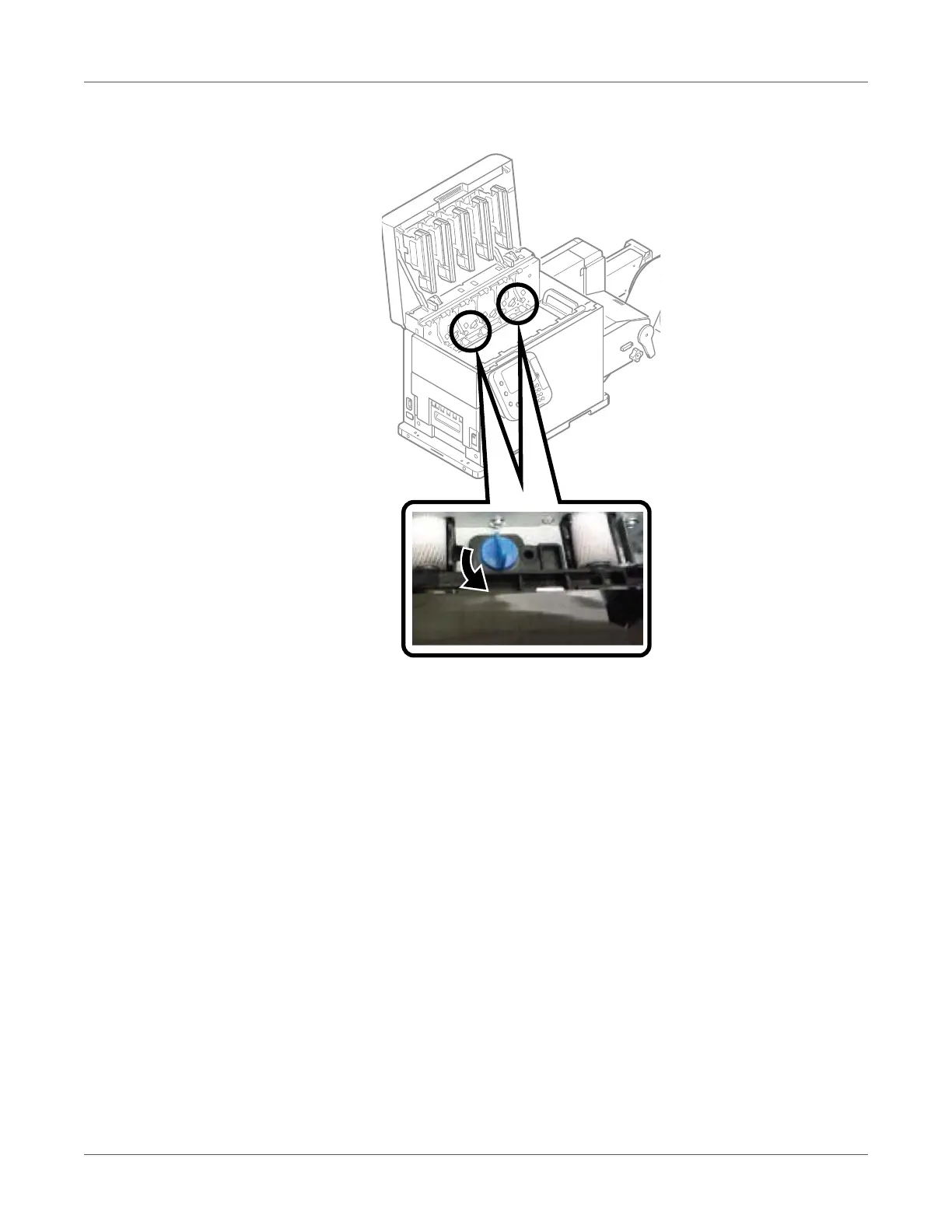

9 Turn the two belt locking keys counterclockwise to release the lock.
