Replacing Wear Items

QL-300 User Guide 351

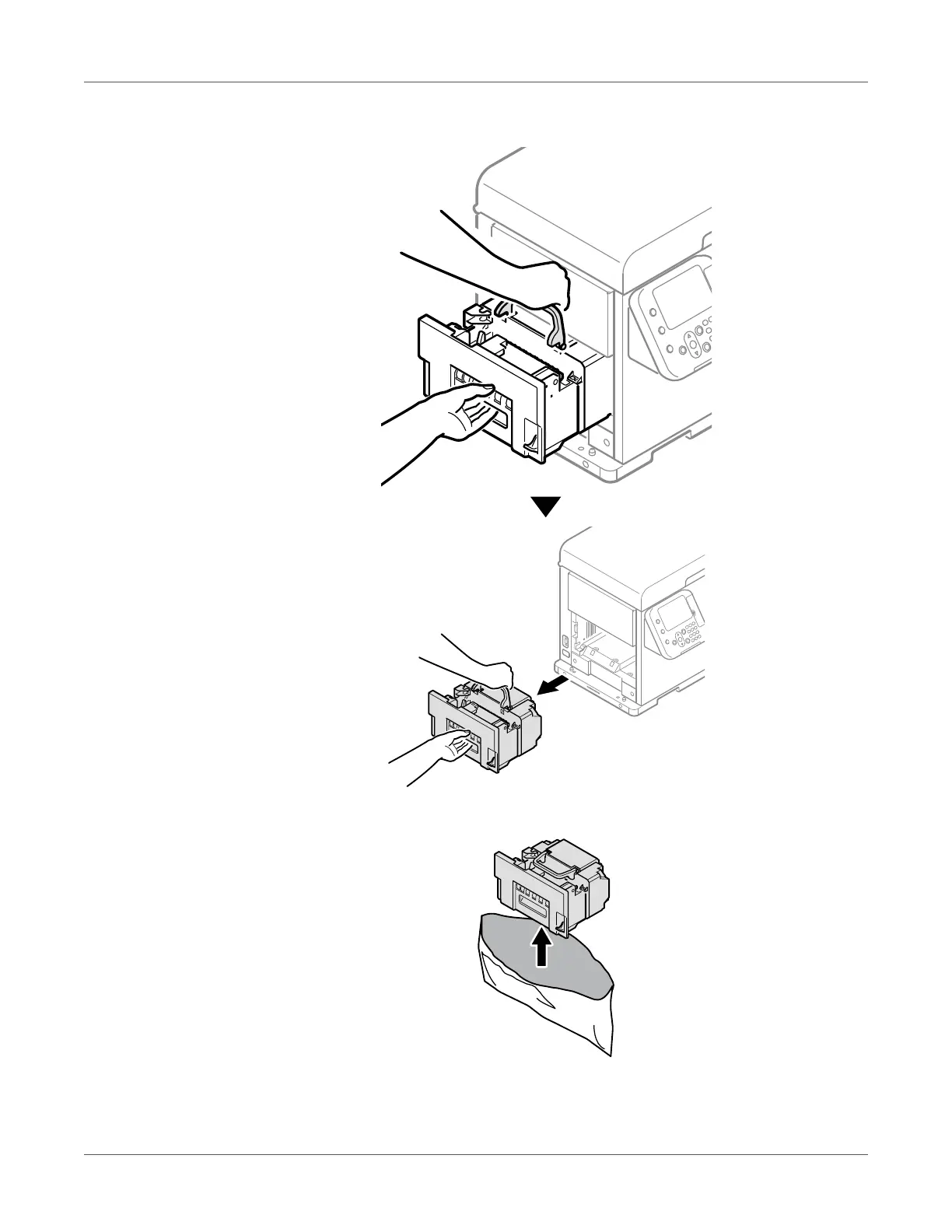

4 Hold the fuser and exit unit with both hands to remove it.

5 Remove the new fuser and exit unit from its packaging.
