Replacing Wear Items

QL-300 User Guide 352

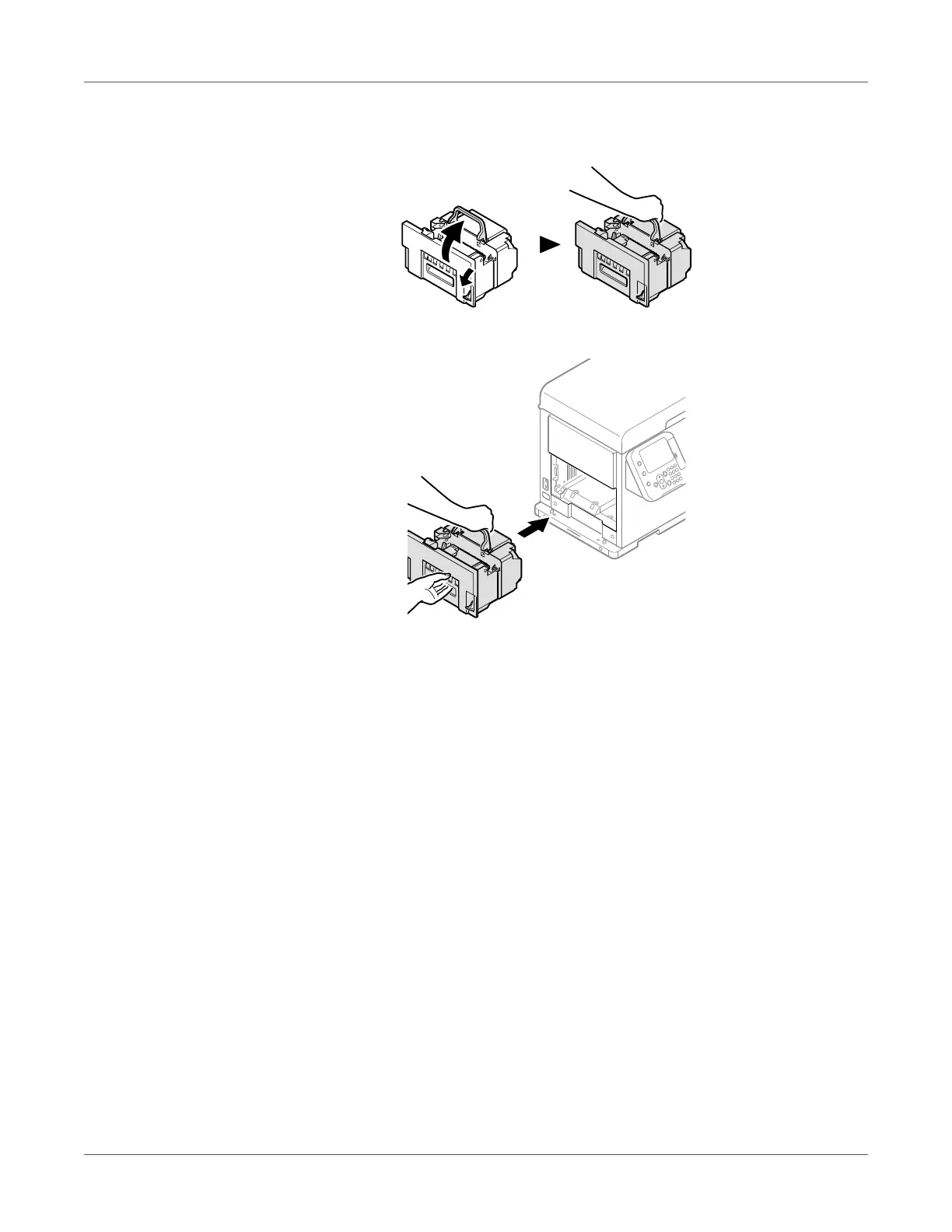

6 Pull the fuser and exit unit locking lever on the new fuser and exit unit towards yourself, and

lift the fuser unit handle.

7 Lift the new fuser and exit unit with both hands and put it into the printer.
