Cleaning

QL-300 User Guide 360

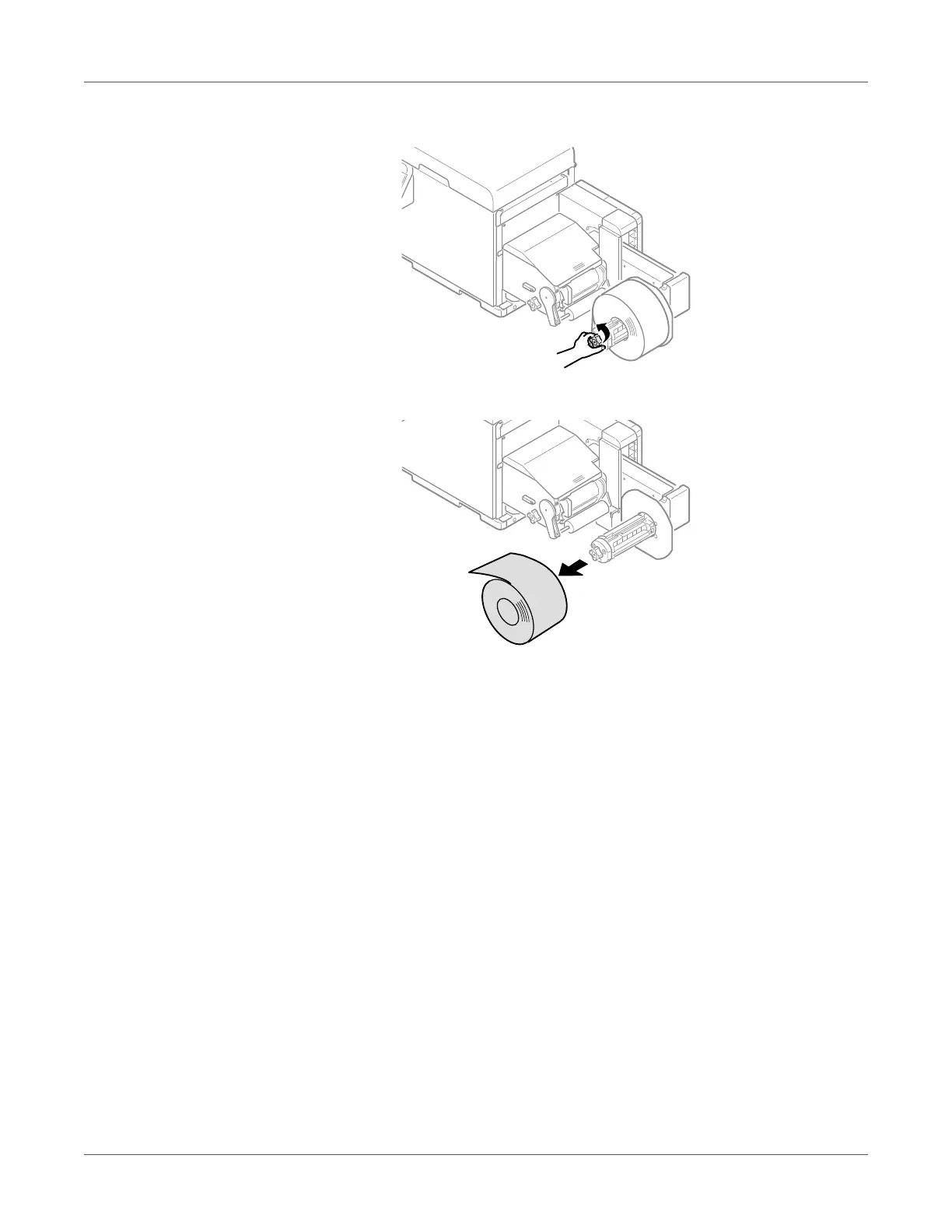

4 Rotate the roll paper holder knob to narrow the axial diameter of the roll paper holder.

5 Remove the roll paper.
