Cleaning

QL-300 User Guide 361

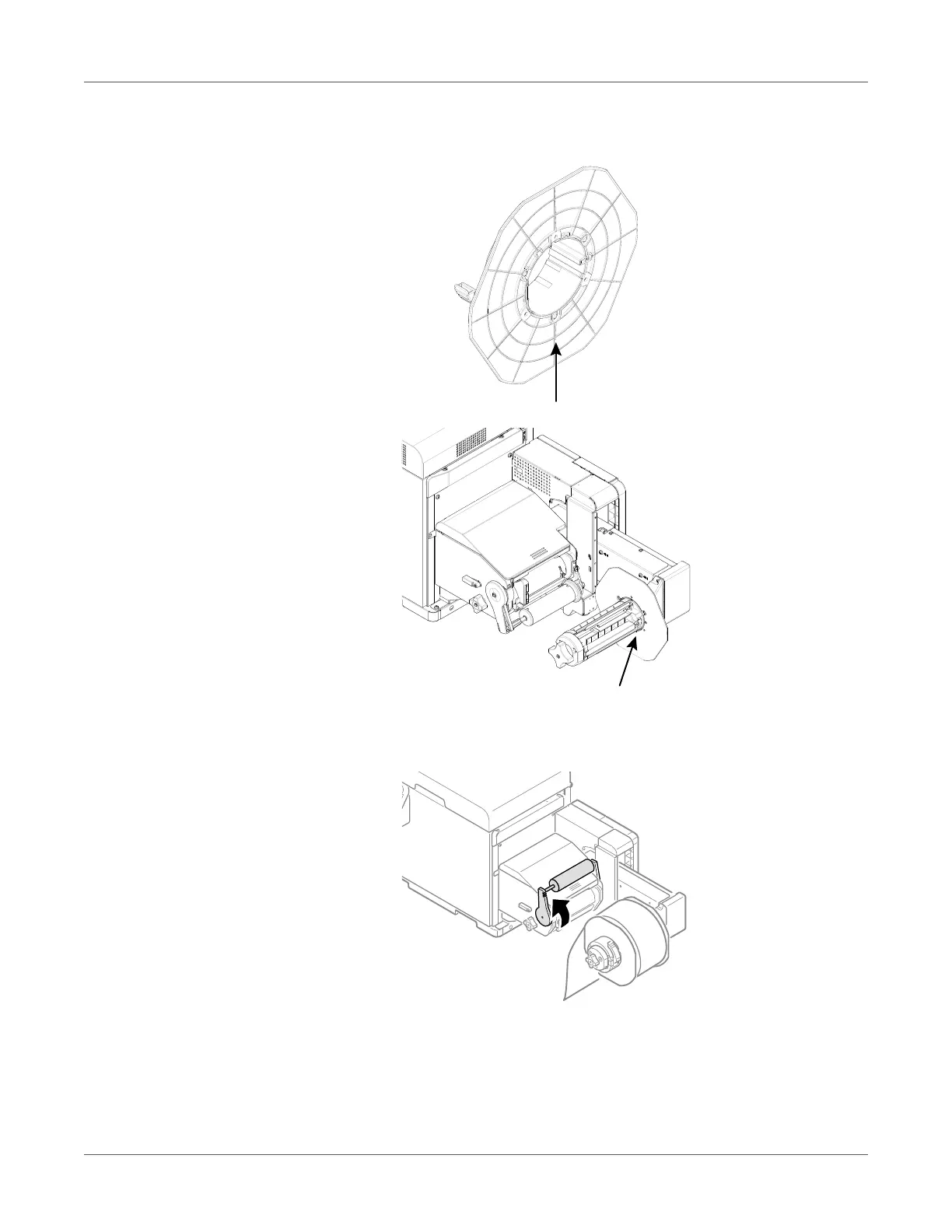

6 Use a clean, lint-free cloth moistened with alcohol to wipe any dirt off the sides of the flange

and Side-Guide-8Inch.

7 Mount the roll paper.

8 Press up on the tension bar open lever until it clicks.
