Cleaning

QL-300 User Guide 398

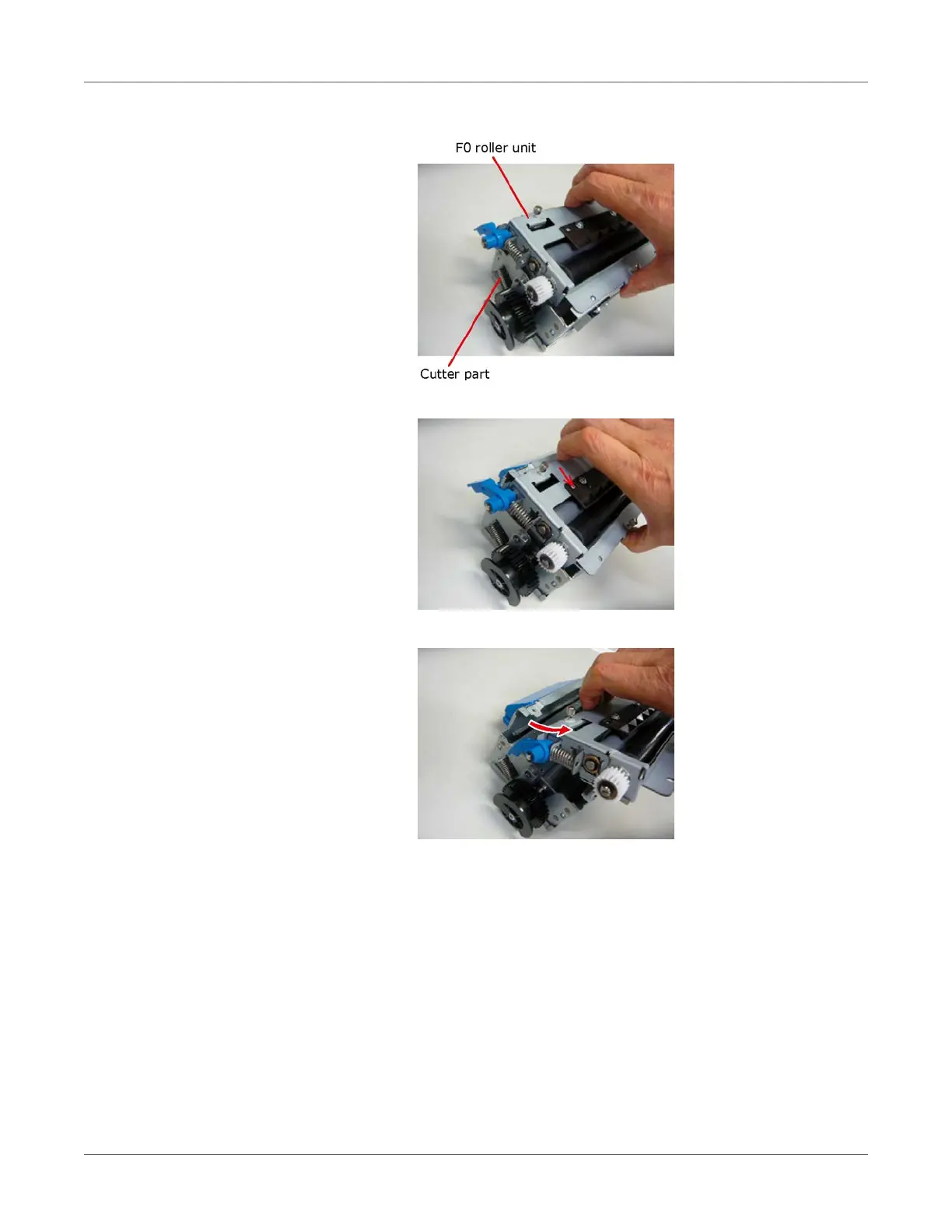

b) Remove the F1 roller unit.

Hold the F0 roller unit.

Slide the F0 roller unit in the direction of the arrow.

Slide the F0 roller unit at an angle (arrow direction) and remove it.

Caution: There are blades inside the cutter unit for cutting roll paper. Do not touch the

blades of the cutter with your hands. There is a risk of injury.

9 Remove any paper left inside the cutter unit.
