Cleaning

QL-300 User Guide 402

Caution: There are blades inside the cutter unit for cutting roll paper. Do not touch the

blades of the cutter with your hands. There is a risk of injury.

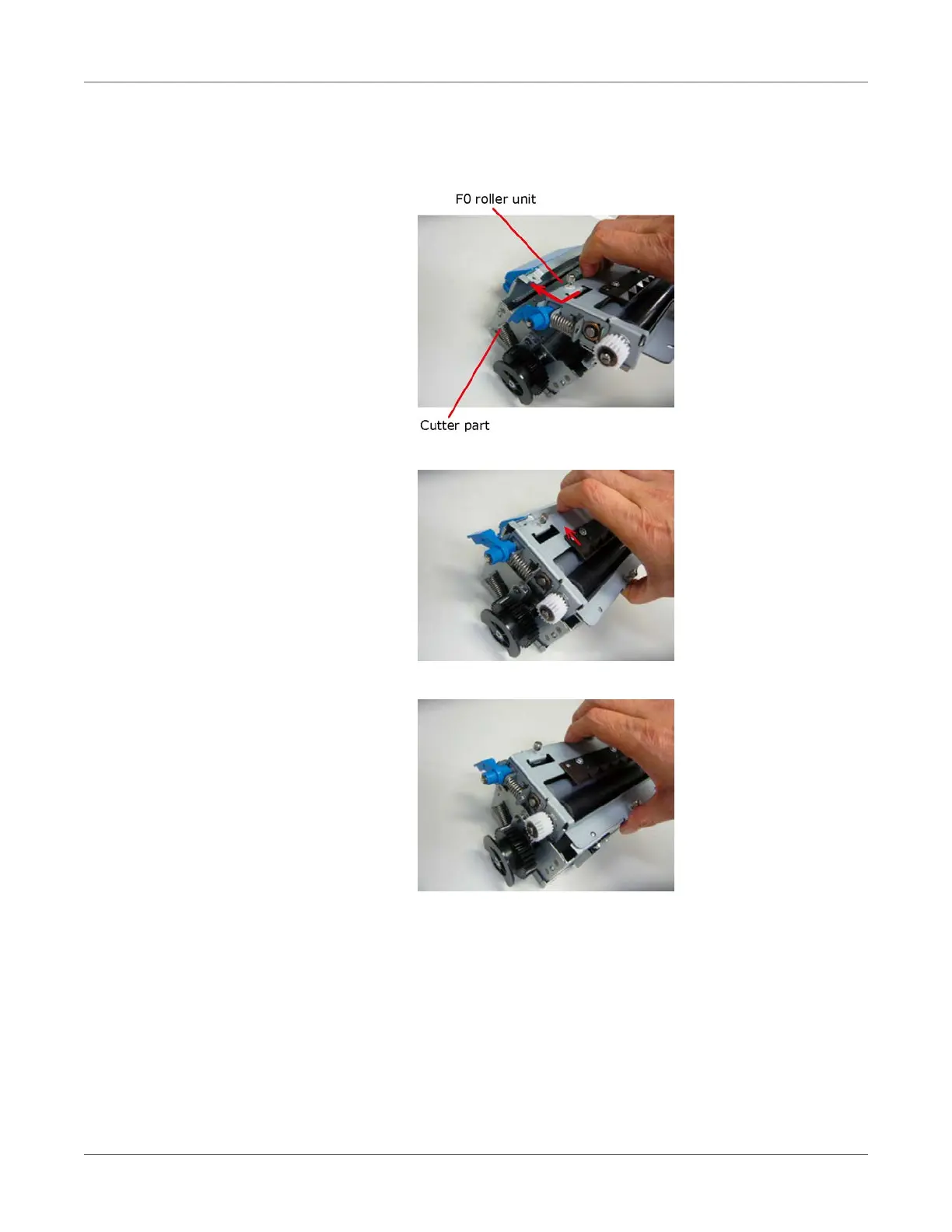

a) Assemble the F1 roller unit.

Hold the F0 roller unit and insert it at an angle (arrow direction).

Slide the F0 roller unit in the direction of the arrow.

Default Chapter8
