QL-300 User Guide 403

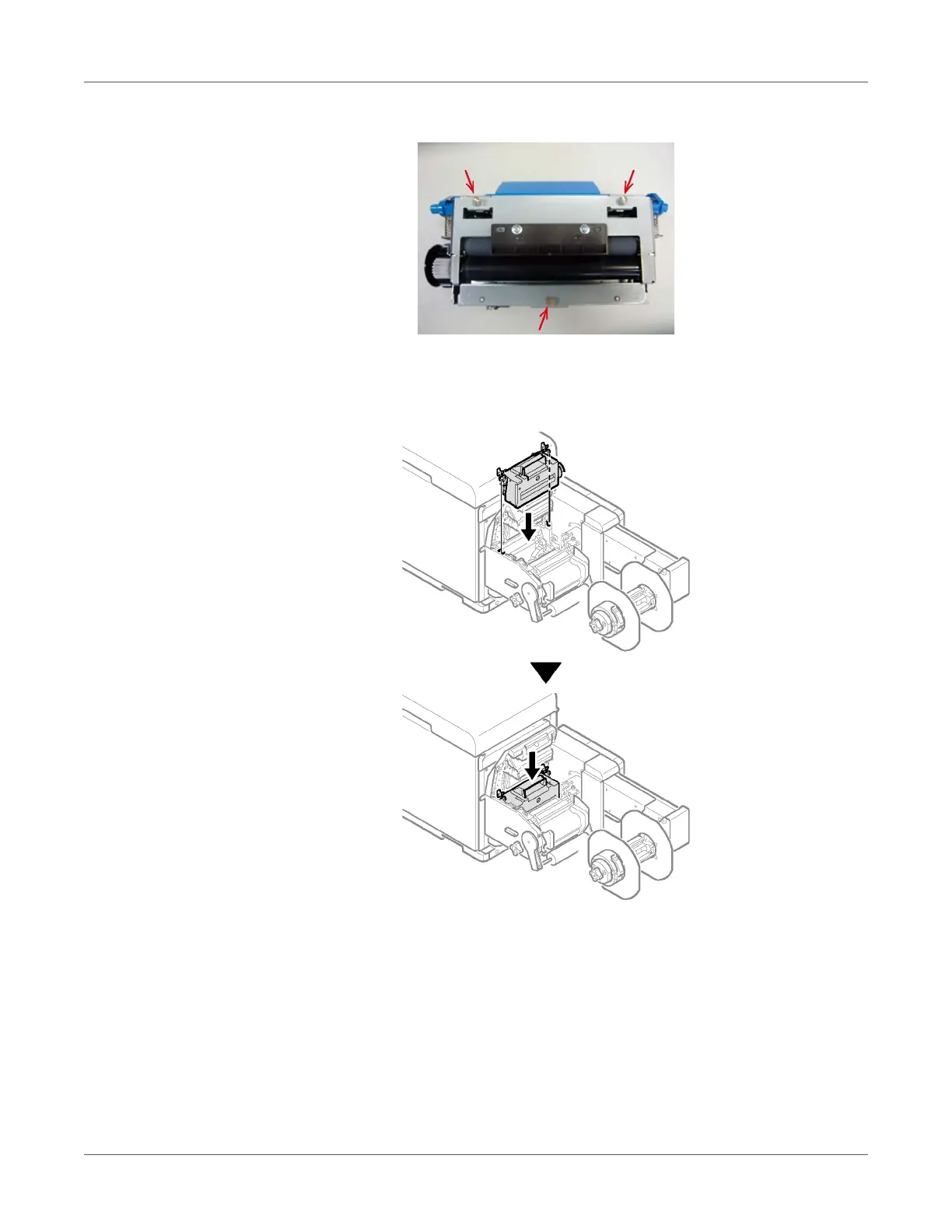

b) Use a flathead screwdriver to tighten the 3 screws.

13 Put the cutter unit into the unwinder.

a) Align the positions of the cutter unit lock levers on both ends of the cutter unit with

the notches in the unwinder.
