Web Utility
QL-300 User Guide 422
• For the IPv6 address, use single-byte alphanumeric characters separated by colons (:).
Abbreviated notation is not supported.
• Entry of IP address 0.0.0.0. is invalid.

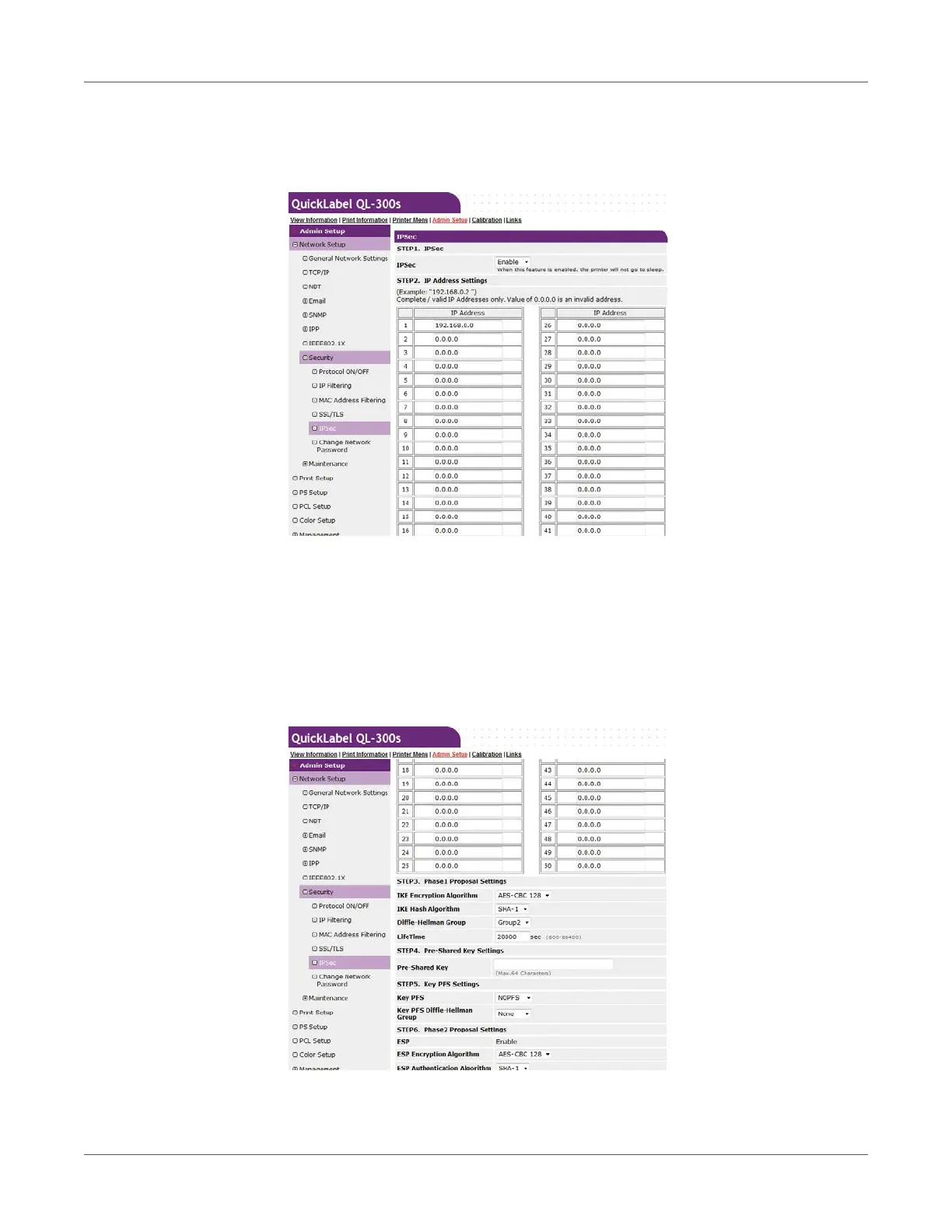

6 Under STEP3, configure the settings of the Phase1 Proposal parameters.
•For IKE Encryption Algorithm, select one of the following settings: AES-CBC 256,
AES-CBC 192, AES-CBC 128, 3DES-CBC, DES-CBC.
•For IKE Hash Algorithm, select SHA-1 or MD5.
•For Diffie-Hellman Group, select Group2 or Group1.
•For Lifetime, enter and set a value in the range of 600 (seconds) to 86,400 (seconds).
7 Under STEP4, set the pre-shared key.
