4.4.2.5 [Self Test]
This menu item is used for self-testing of the FP6.
• [Self Test] dialog box
After self-testing of the FP6 hardware has completed, the following dialog box will appear to show the
result of self-testing of the FP6 hardware.
Cautions:
1. The MCU and equipment connected to the target connector and remote connector must be
removed before the test.
2. Execute the test while power is being supplied from the power adapter to the FP6.

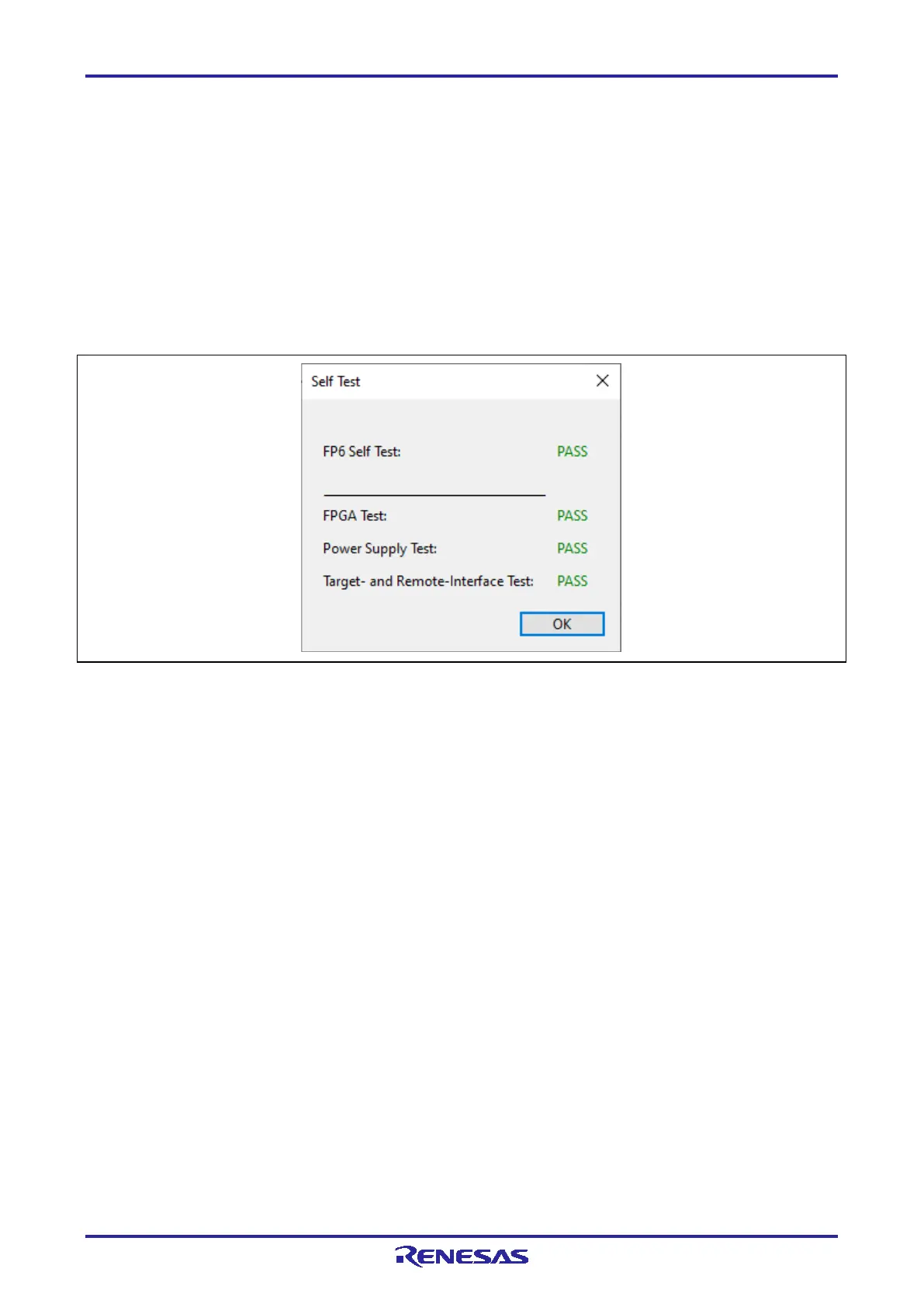

Figure 4.18 [Self Test] Dialog Box
