Ricoh MPC 2800 AT-C2 User Manual

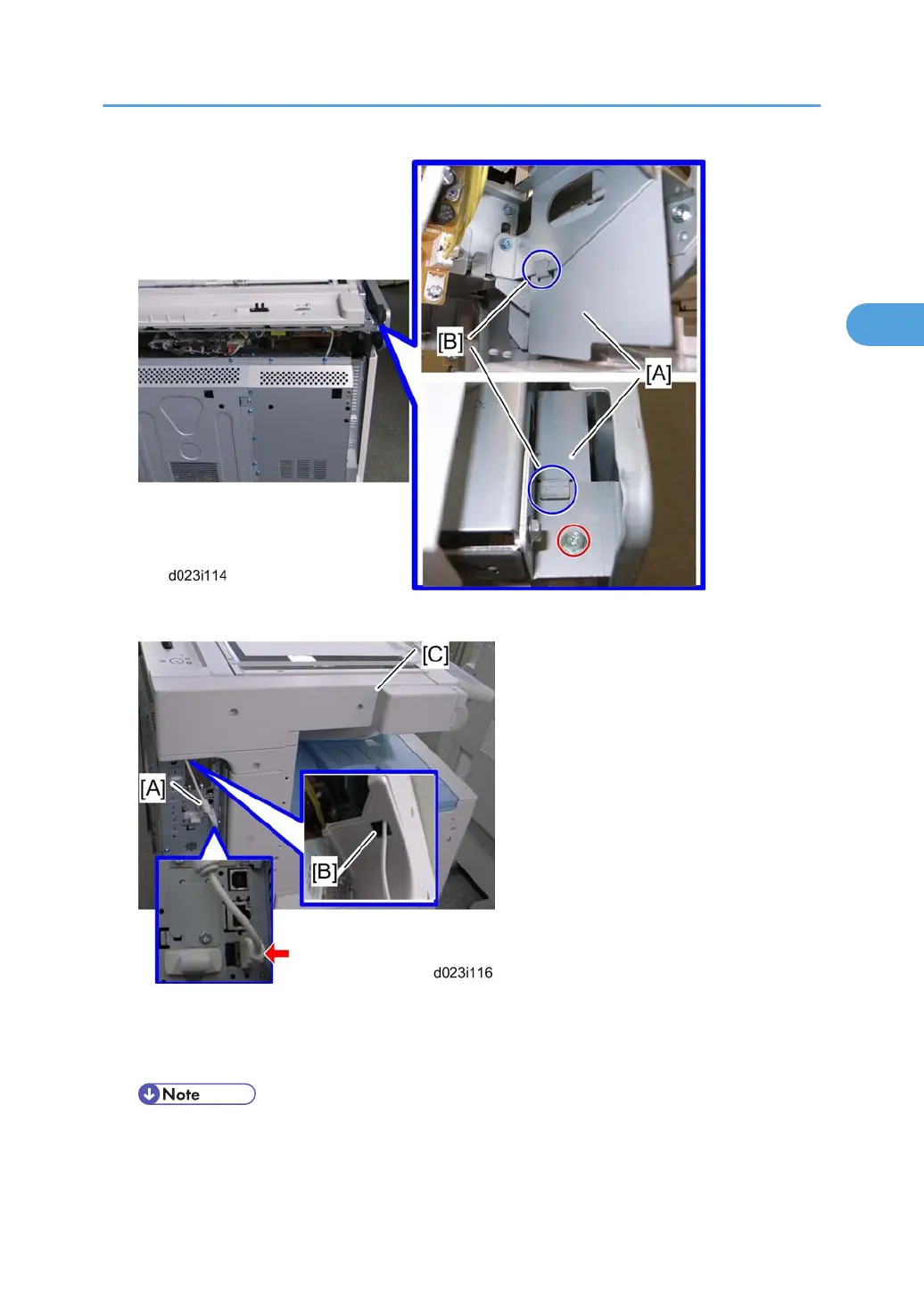

12. Attach the bracket [A] with its two hooks [B] as shown above ( x 1: M3x6).
13. Put the USB cable [A] through the cutout [B] of the left frame cover.
14. Attach the scanner left cover [C] to the mainframe, and then connect the USB cable [A] to USB-A
(front side) as shown above.
• Make sure that the USB cable is inserted in USB-A (front side).
15. Reinstall the rear cover ( x 8).
16. Plug in and turn on the mainframe.
USB2.0/SD Slot Type A
109
2

Ricoh MPC 2800 AT-C2 Specifications

General

Brand	Ricoh
Model	MPC 2800 AT-C2
Category	All in One Printer
Language	English
