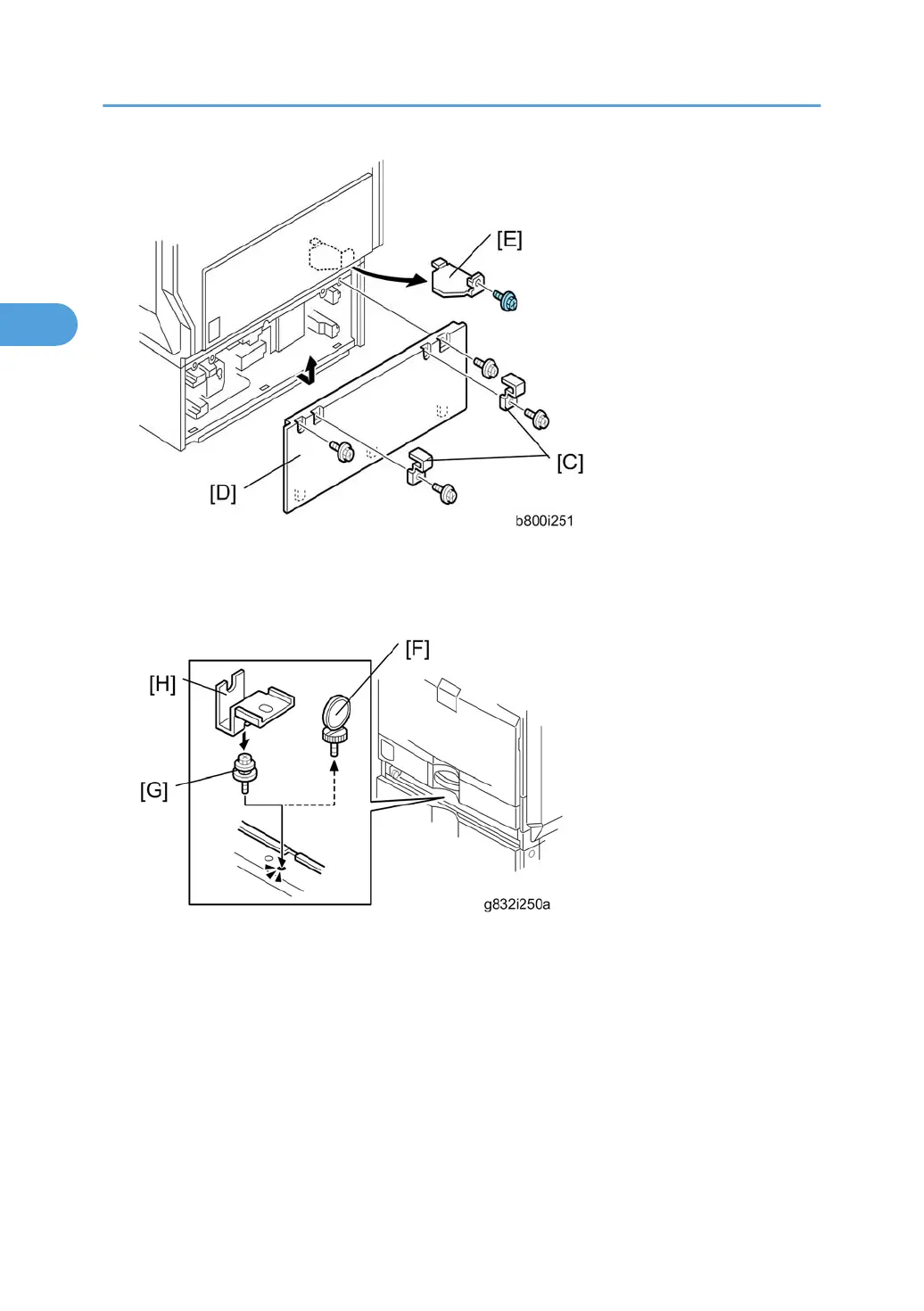

4. Remove the two securing brackets [C] ( x 1 each), and then the rear cover [D] of the optional paper
feed unit ( x 2).
5. Remove the harness cover bracket [E] ( x 1).
6. Pull out tray 2 from the mainframe.
7. Replace the shoulder screw [F] with the washer screw [G], using securing bracket [H] ( x 1).
2. Installation
116
2

Ricoh MPC 2800 AT-C2 Specifications

General

Brand	Ricoh
Model	MPC 2800 AT-C2
Category	All in One Printer
Language	English
