• "ANT1" is a transmission/reception antenna and "ANT2" is a reception antenna. Do not attach
them at the wrong places.
7. Attach the clamps as shown above.
8. Wire the cables and clamp them ( x 7).
• Make sure that the cables are not slack. Keep them wired tightly along the covers.
You may have to move the machine if the reception is not clear.
• Make sure that the machine is not located near an appliance or any type of equipment that generates
strong magnetic fields.
• Put the machine as close as possible to the access point.
Installing Hardware Combinations

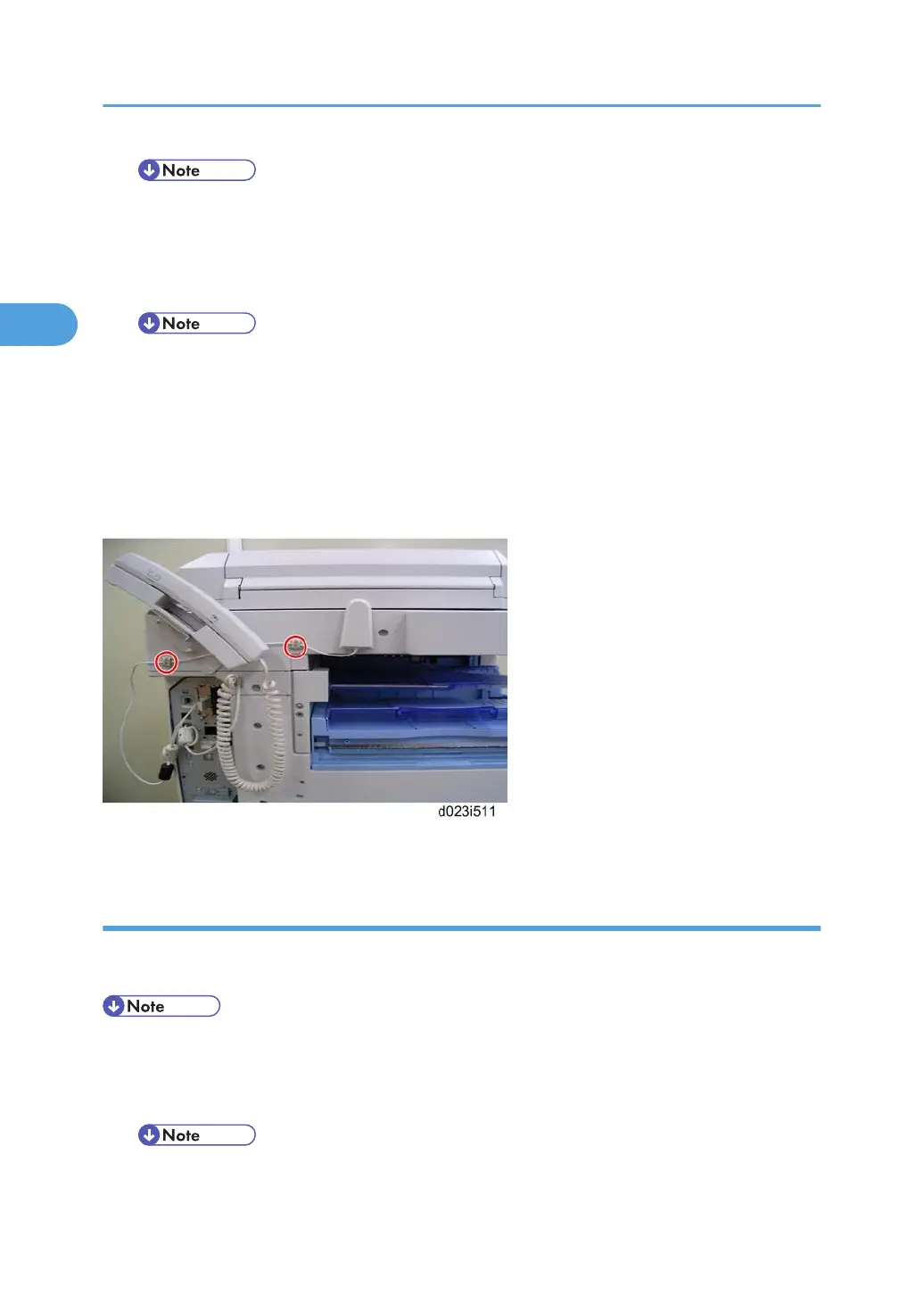

• Refer to the above picture when installing the handset and the USB2.0/SD.
UP Mode Settings for Wireless LAN
Enter the UP mode. Then do the procedure below to perform the initial interface settings for IEEE 802.11
a/g, g. These settings take effect every time the machine is powered on.
• You cannot use the wireless LAN if you use Ethernet.
1. Press the “User Tools/Counter” key.
2. On the touch panel, press “System Settings”.
• The Network I/F (default: Ethernet) must be set for either Ethernet or wireless LAN.
