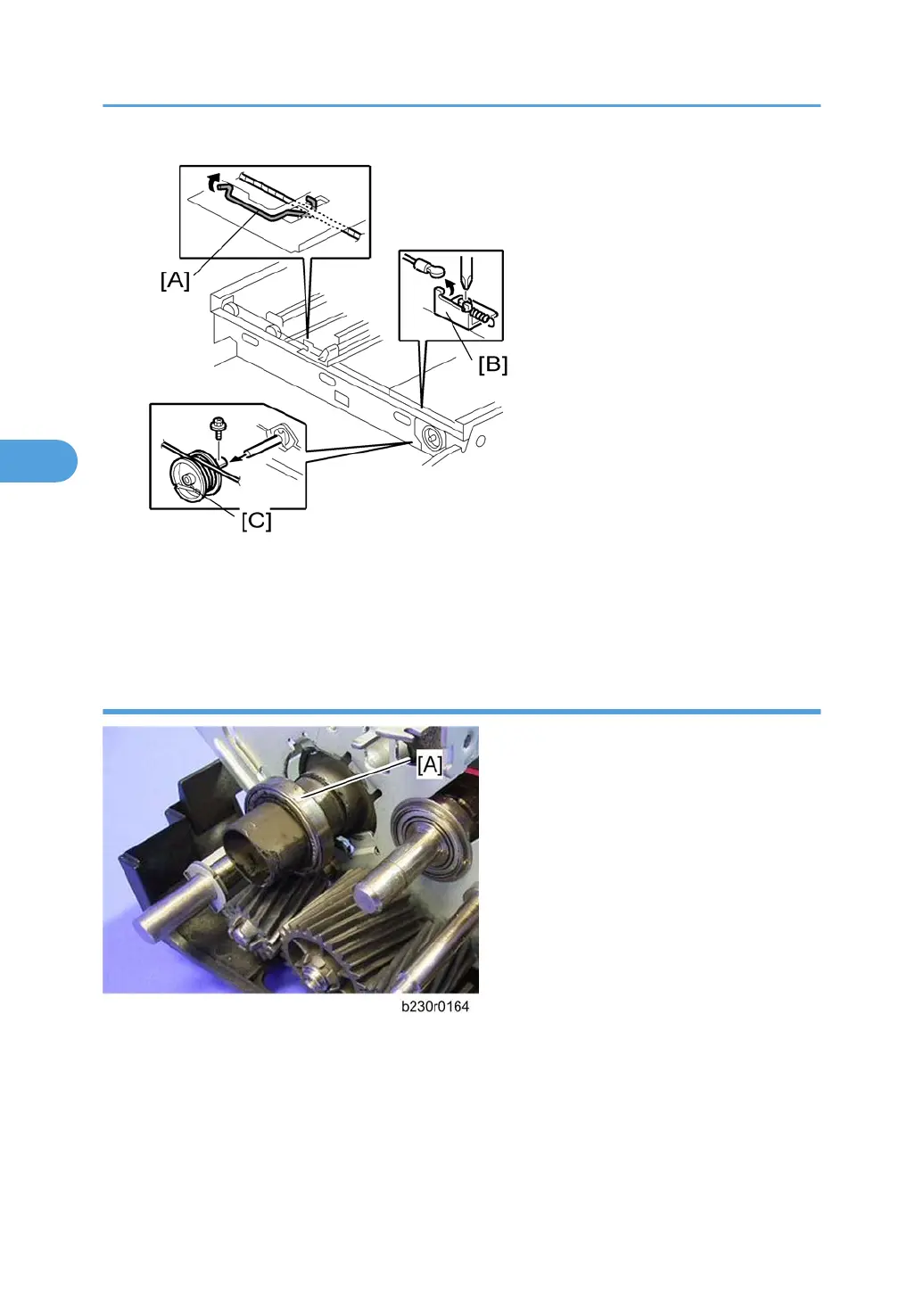

4. Front scanner wire clamp [A]
5. Front scanner wire bracket [B] ( x 1)
6. Front scanner wire and scanner drive pulley [C] ( x 1)
Reinstalling the Front Scanner Wire
1. Position the center ball [A] in the middle of the forked holder.
2. Pass the right end (with the ball) [B] through the square hole. Pass the left end (with the ring) [C] through
the notch.
3. Wind the right end counterclockwise (shown from the machine’s front) five times. Wind the left end
clockwise twice.
4. Replacement and Adjustment
184
4
