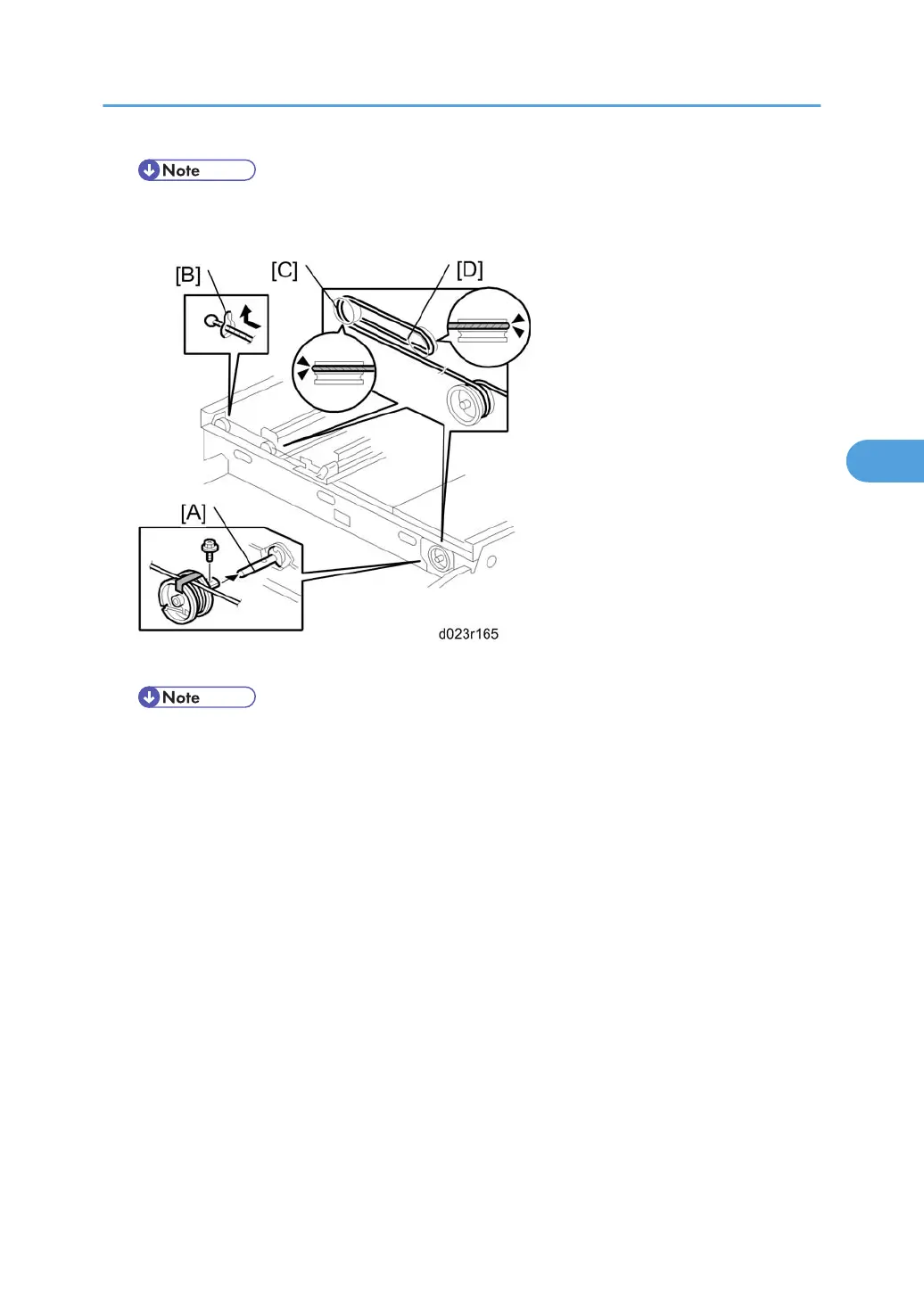

• The two red marks [D] come together when you have done this. Stick the wire to the pulley with
tape. This lets you easily handle the assembly at the time of installation.
4. Install the drive pulley on the shaft [A].
• Do not attach the pulley to the shaft with the screw at this time.
5. Insert the left end into the slit [B]. The end should go via the rear track of the left pulley [C] and the
rear track of the movable pulley [D].
Scanner Unit
185
4
