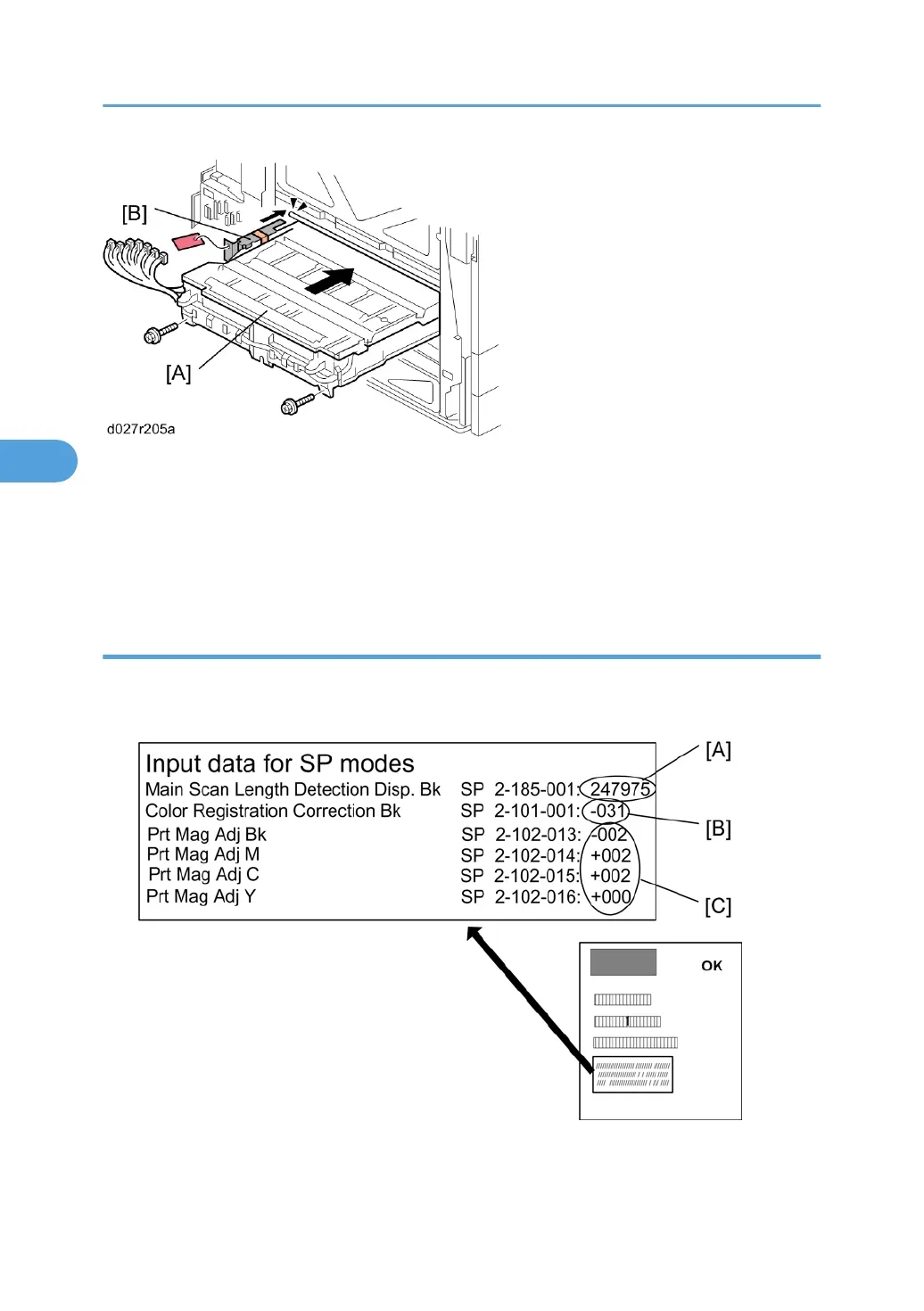

1. Push the new laser optics housing unit [A] slowly into the copier until the bracket [B] bumps against
the frame of the copier.
2. Remove the bracket [B], and then push the new laser optics housing unit fully into the copier ( x 2,
All 's, x 3).
3. Reassemble the machine.
After installing the new laser optics housing unit
Do the following adjustment after installing the new laser optics housing unit.
1. Plug in and turn on the main power switch.
2. Adjust the main scan magnification for K, M, C, Y.
4. Replacement and Adjustment
194
