1. Front door (*p.169 "Rear Cover")
2. Image transfer belt unit (*p.213 "Image Transfer Belt Unit")
3. All PCUs (*p.198 "PCU")

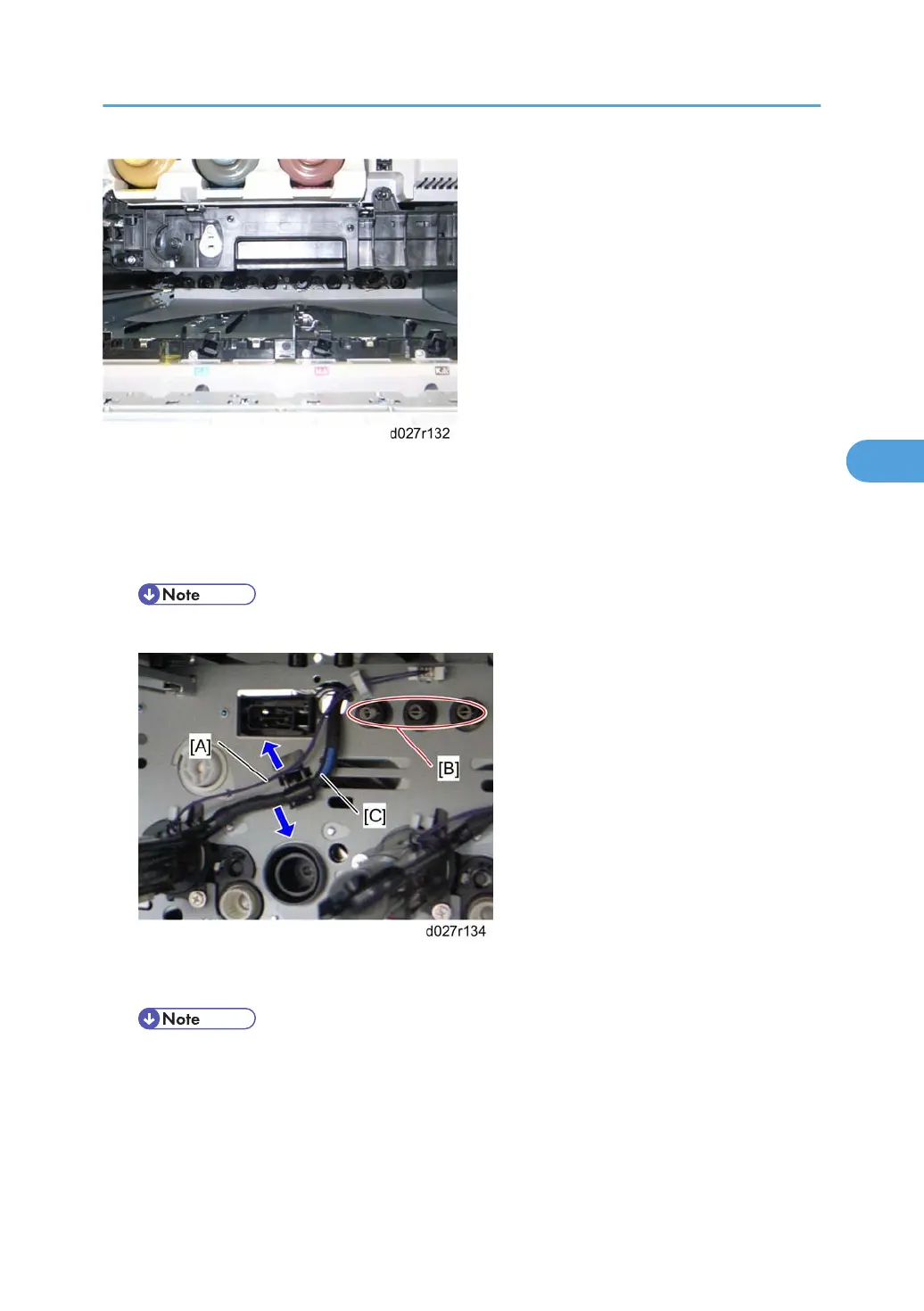

4. Put a sheet of paper (A3/DLT) inside the machine as shown and on the floor.
• The sheet of paper on the floor is used in a later step.
5. Release the harness [A] from the clamp ( x 1 for YCM,  x 2 for K) and hook, and then disconnect
the harness.
• Avoid touching these spring terminals [B].
6. Release the toner supply tube [C].
Image Creation
207
4
