Ricoh MPC 2800 AT-C2 User Manual

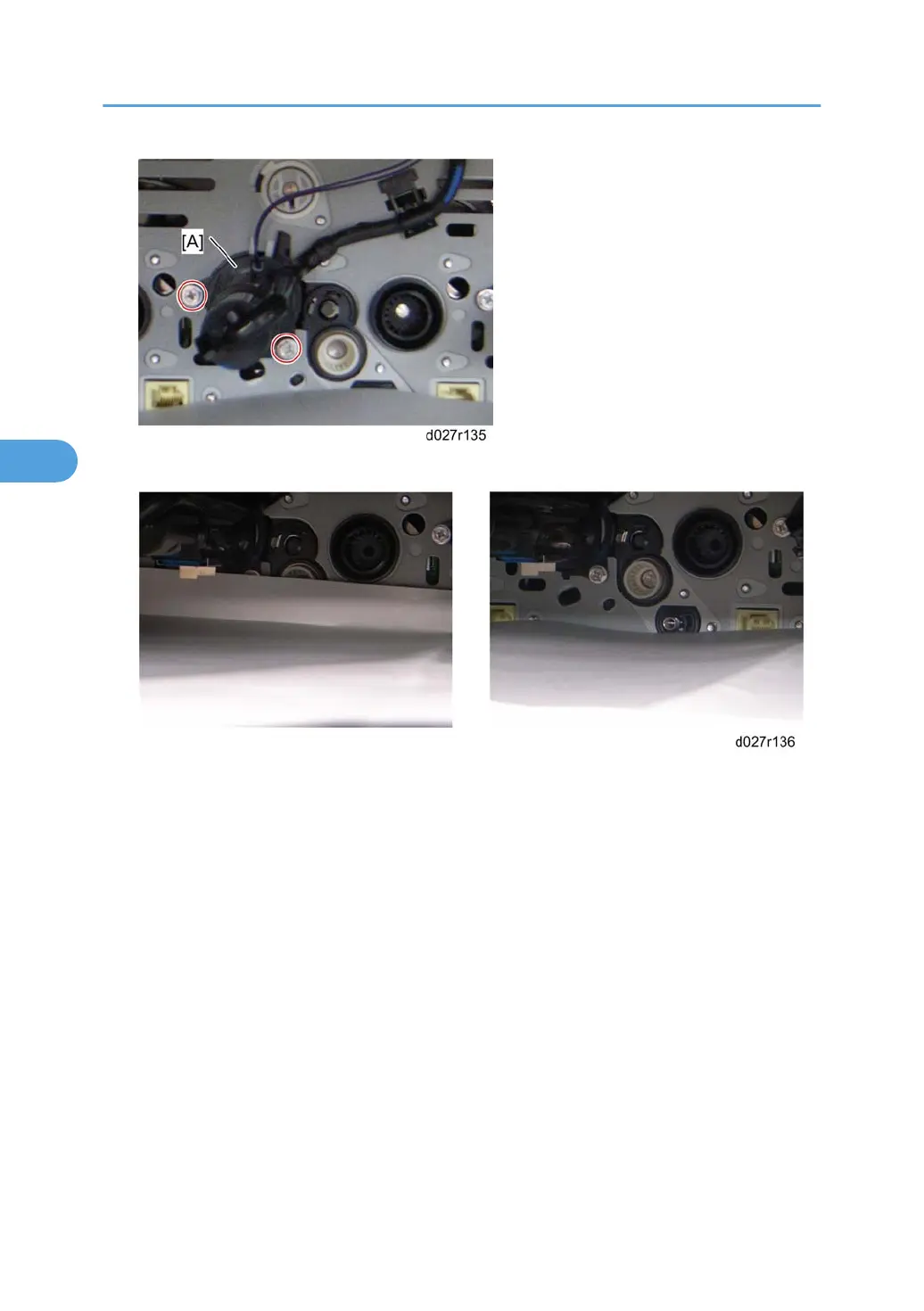

7. Remove the toner pump unit [A] ( x 2)
• Make sure that a sheet of paper is attached to the frame of the rear side. The picture on the left shows
a sheet of paper that is correctly set, but the picture on the right shows a sheet of paper that is not
correctly set. This sheet of paper prevents toner and screws from falling into the laser optics housing
unit through cutouts.
4. Replacement and Adjustment
208
4

Ricoh MPC 2800 AT-C2 Specifications

General

Brand	Ricoh
Model	MPC 2800 AT-C2
Category	All in One Printer
Language	English
