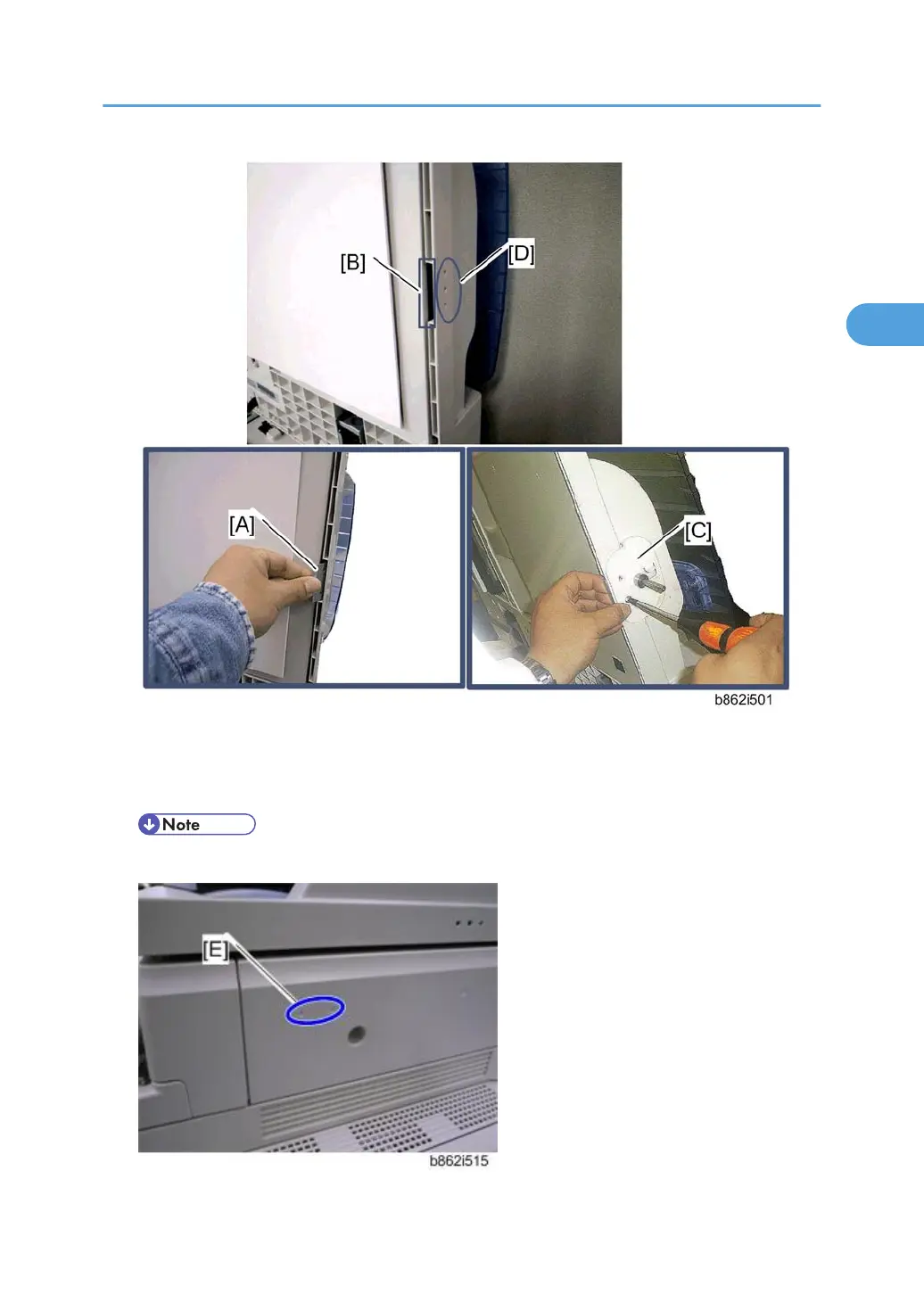

2. Hold the securing bracket [A] at the location [B], inside the ADF cover.
3. Secure the stud bracket [C] to the outside of the ADF cover at location [D] with two screws ( x 2:
M3x8).
• The two screws must go through the ADF cover and the securing bracket [A].
Document Feeder Handle Type 5
63
2
