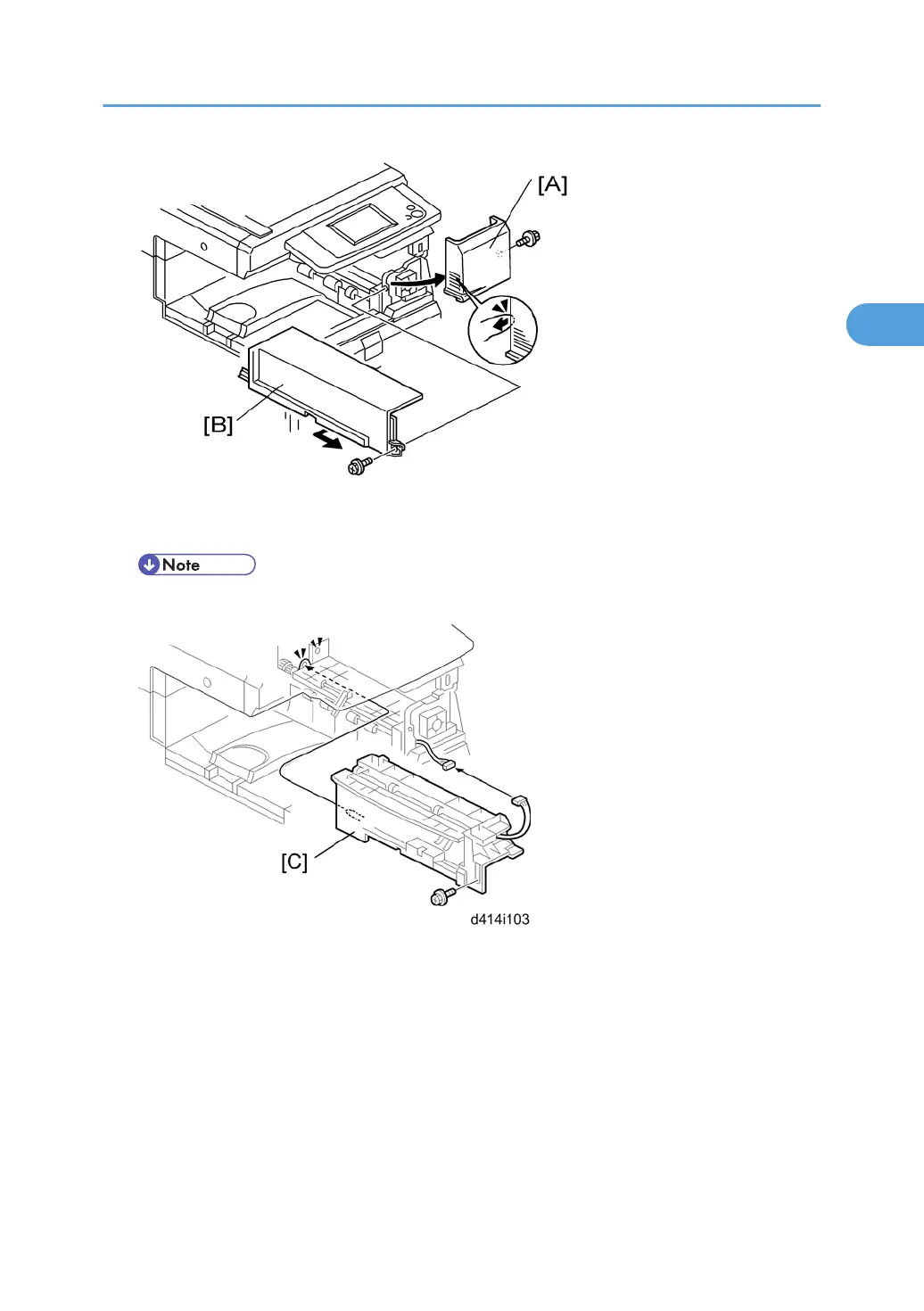

3. Remove the front right cover [A] ( x 1).
4. Remove the inner cover [B] ( x 1).
• Keep this screw for step 5.
5. Install the 1-bin tray unit [C] (x 1,  x 1,  x 1 [This screw was removed in step 4]).
1-Bin Tray Unit (D414)
69
2

Ricoh MPC 2800 AT-C2 Specifications

General

Brand	Ricoh
Model	MPC 2800 AT-C2
Category	All in One Printer
Language	English
