Ricoh MPC 2800 AT-C2 User Manual

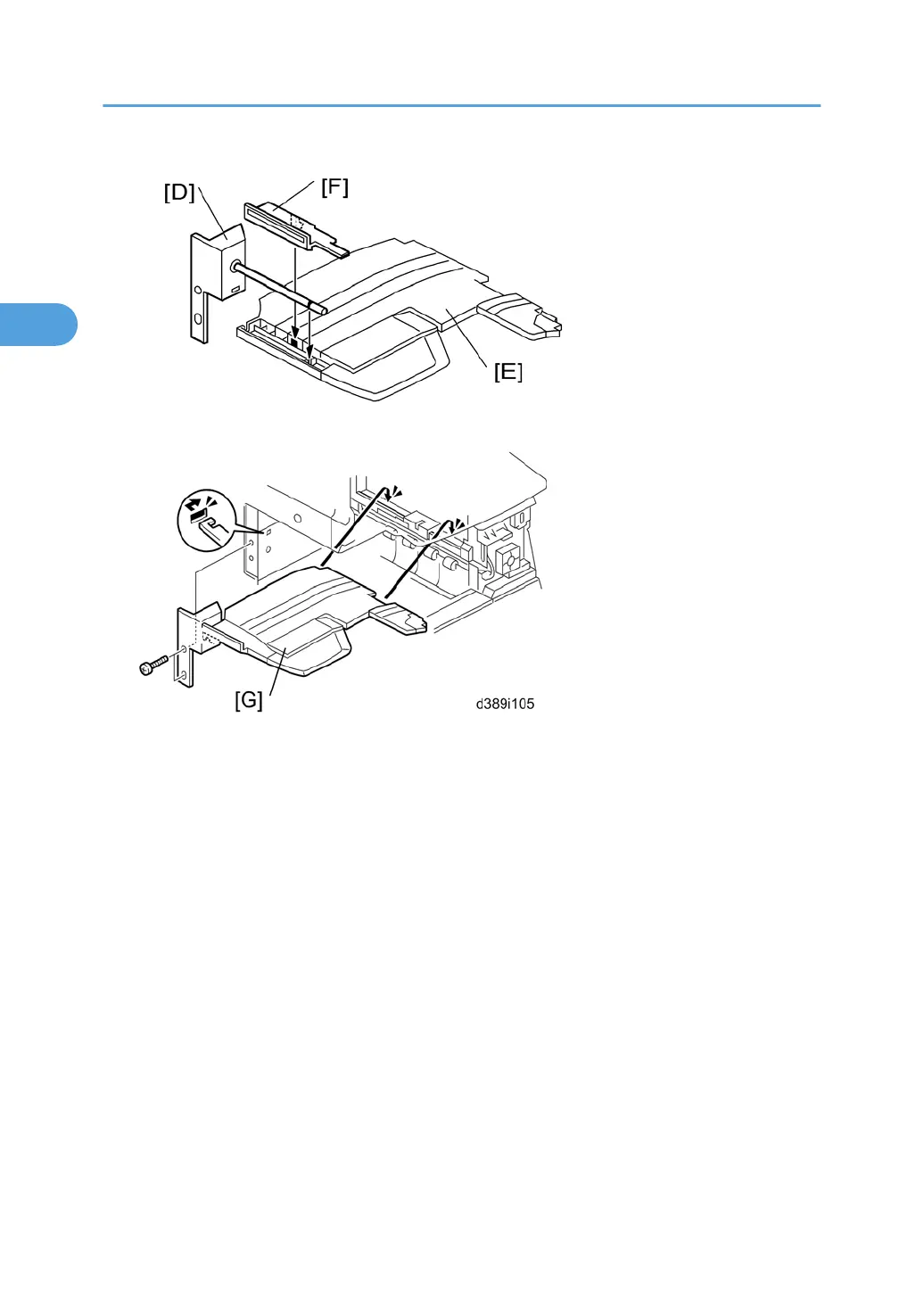

6. Attach the tray support bar [D] to the tray [E] as shown, and then attach the end-fence [F].
7. Install the tray [G] (with the tray support bar) in the machine (M3 x 16:  x 2).
8. Reinstall the front right cover in the machine, and then close the right door of the machine.
9. Turn on the main power switch of the machine.
10. Check the 1-bin tray unit operation.
2. Installation
70
2
