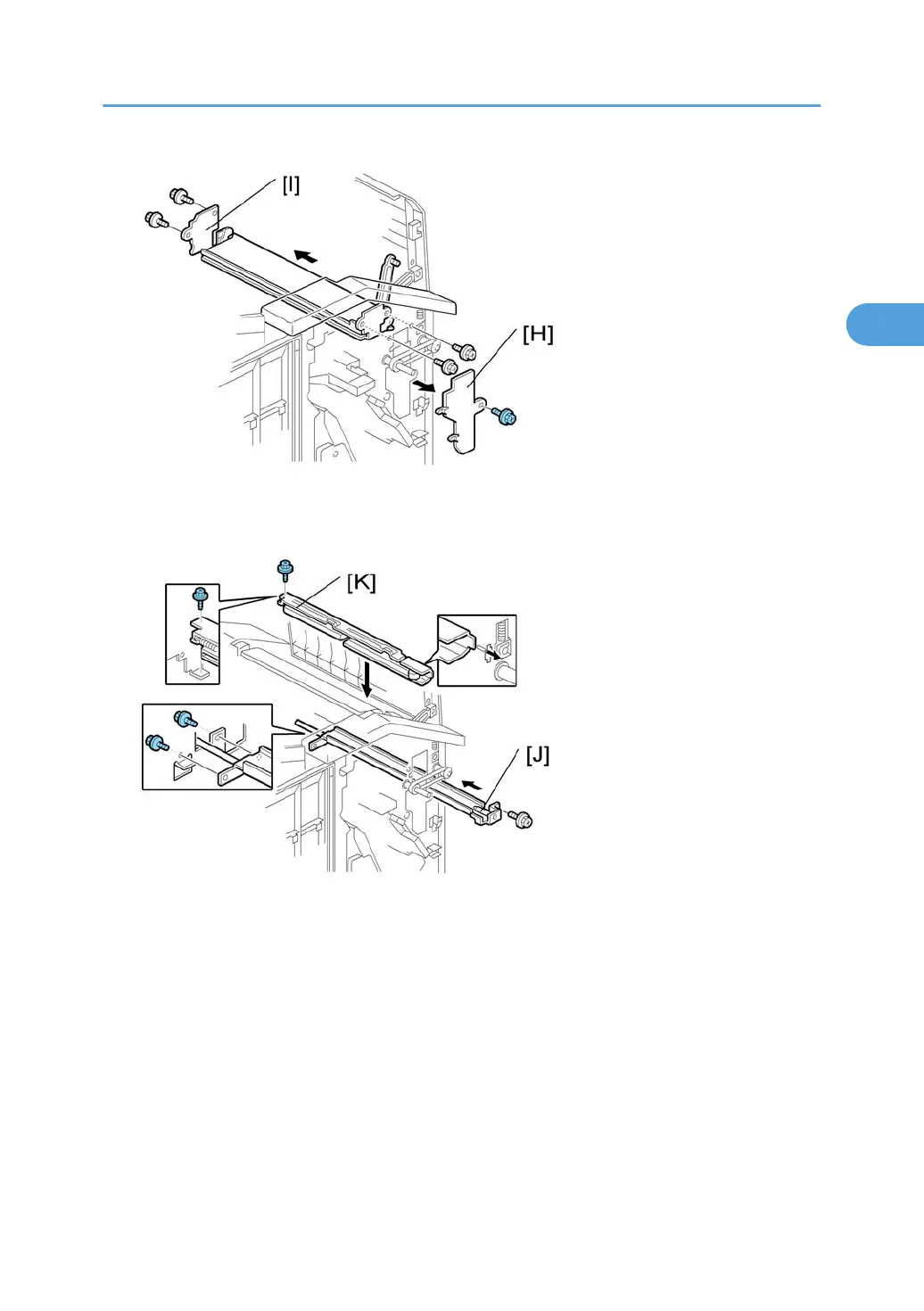

7. Cover bracket [H] ( x 1)

8. Remove the paper guide plate [I] from the rear side ( x 4).

9. Install the punch unit stay [J] from the front side ( x 3).

10. Install the sub-scan registration sensor guide [K] from the top ( x 1).

Punch Unit

93

2
