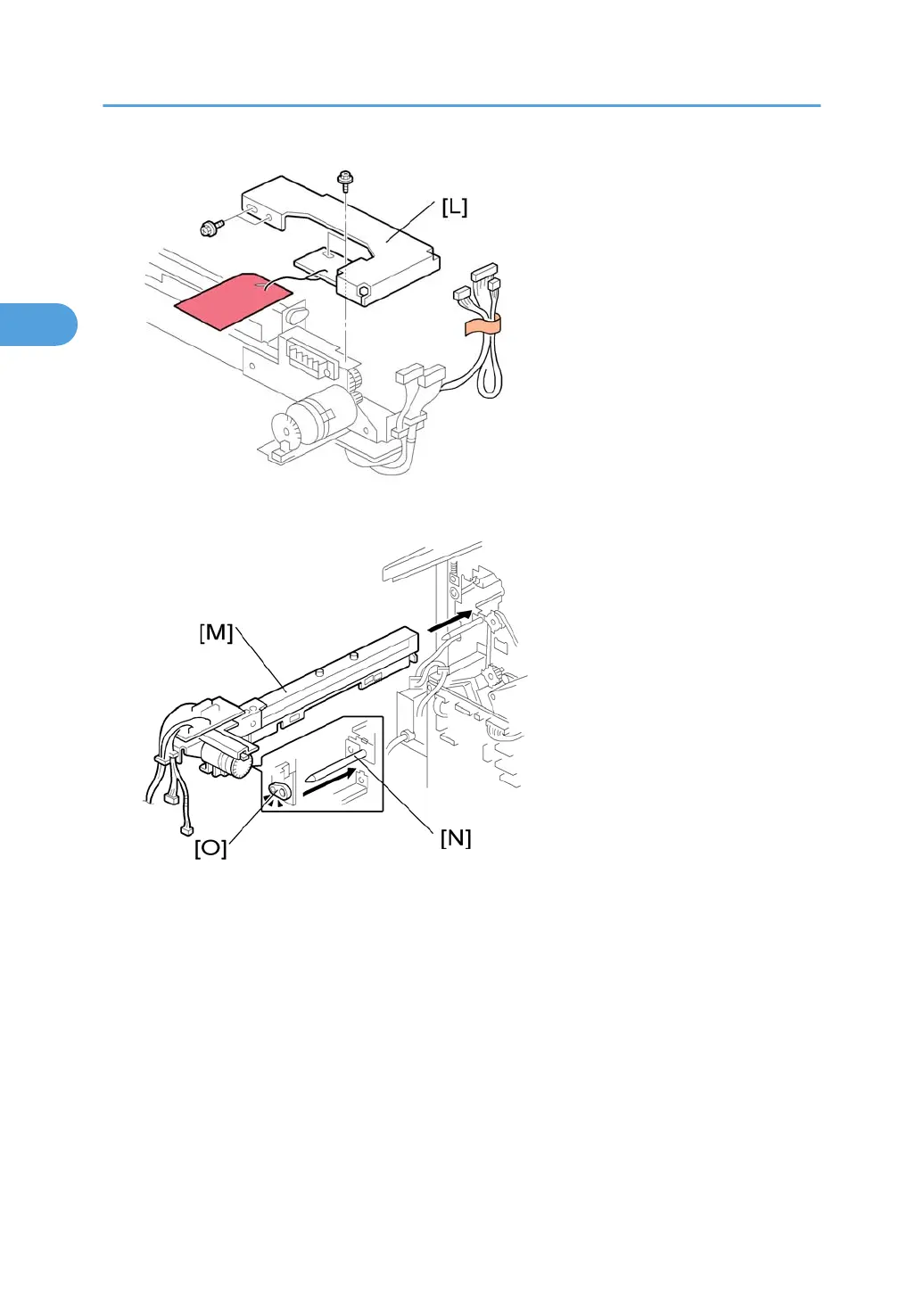

11. Remove the bracket [L] from the punch unit ( x 1).

12. Install the punch unit [M] along the punch unit stay from the rear side.

13. Make sure to put the punch unit stay pin [N] through the hole [O].

2. Installation

94

2
