Protocols
Distributed Network Protocol 3.0 (DNP3) LAN/WAN
Output Objects: DNPPAIR = Y
When you set DNPPAIR = Y, there are 463 binary output points mapped to
DNP3. Each port (serial and Ethernet) on the SEL-2032 has 16 controllable
remote bit pairs for a total of 144. Each serial port on the SEL-2032 has 16
circuit breaker bits, totaling 256 points. These points are mapped to DNP3
sequentially by port and bit number, as seen in Table 9.30. As with
DNPPAIR = N above, RB and BR control bits are pulsed and do not need to
be reset or cleared after a successful operation, nor before the next one.
•
•
•
79 1:RB16 Pulse 1:SRB16 Pulse 1:CRB16 Pulse 1:SRB16 Pulse 1:CRB16 Pulse 1:SRB16 Pulse 1:CRB16
80 2:RB01 Pulse 2:SRB1 Pulse 2:CRB1 Pulse 2:SRB1 Pulse 2:CRB1 Pulse 2:SRB1 Pulse 2:CRB1
•
•
•
351 18:RB16 Pulse 18:SRB16 Pulse 18:CRB16 Pulse 18:SRB16 Pulse 18:CRB16 Pulse 18:SRB16 Pulse 18:CRB16
352 1:BR1 Pulse 1:CBR1 Pulse 1:SBR1 Pulse 1:SBR1 Pulse 1:CBR1 Pulse 1:SBR1 Pulse 1:CBR1
353 1: BR2 Pulse 1:CBR2 Pulse 1:SBR2 Pulse 1:SBR1 Pulse 1:CBR2 Pulse 1:SBR1 Pulse 1:CBR2
354 1: BR3 Pulse 1:CBR3 Pulse 1:SBR3 Pulse 1:SBR1 Pulse 1:CBR3 Pulse 1:SBR1 Pulse 1:CBR3
•
•
•
367 1:BR16 Pulse 1:CBR16 Pulse 1:SBR16 Pulse 1:SBR16 Pulse 1:CBR16 Pulse 1:SBR16 Pulse 1:CBR16
368 2:BR1 Pulse 2:CBR1 Pulse 2:SBR1 Pulse 2:SBR1 Pulse 2:CBR1 Pulse 2:SBR1 Pulse 2:CBR1
•
•
•
607 16:BR16 Pulse 16:CBR16 Pulse 16:SBR16 Pulse 16:SBR16 Pulse 16:CBR16 Pulse 16:SBR16 Pulse 16:CBR16

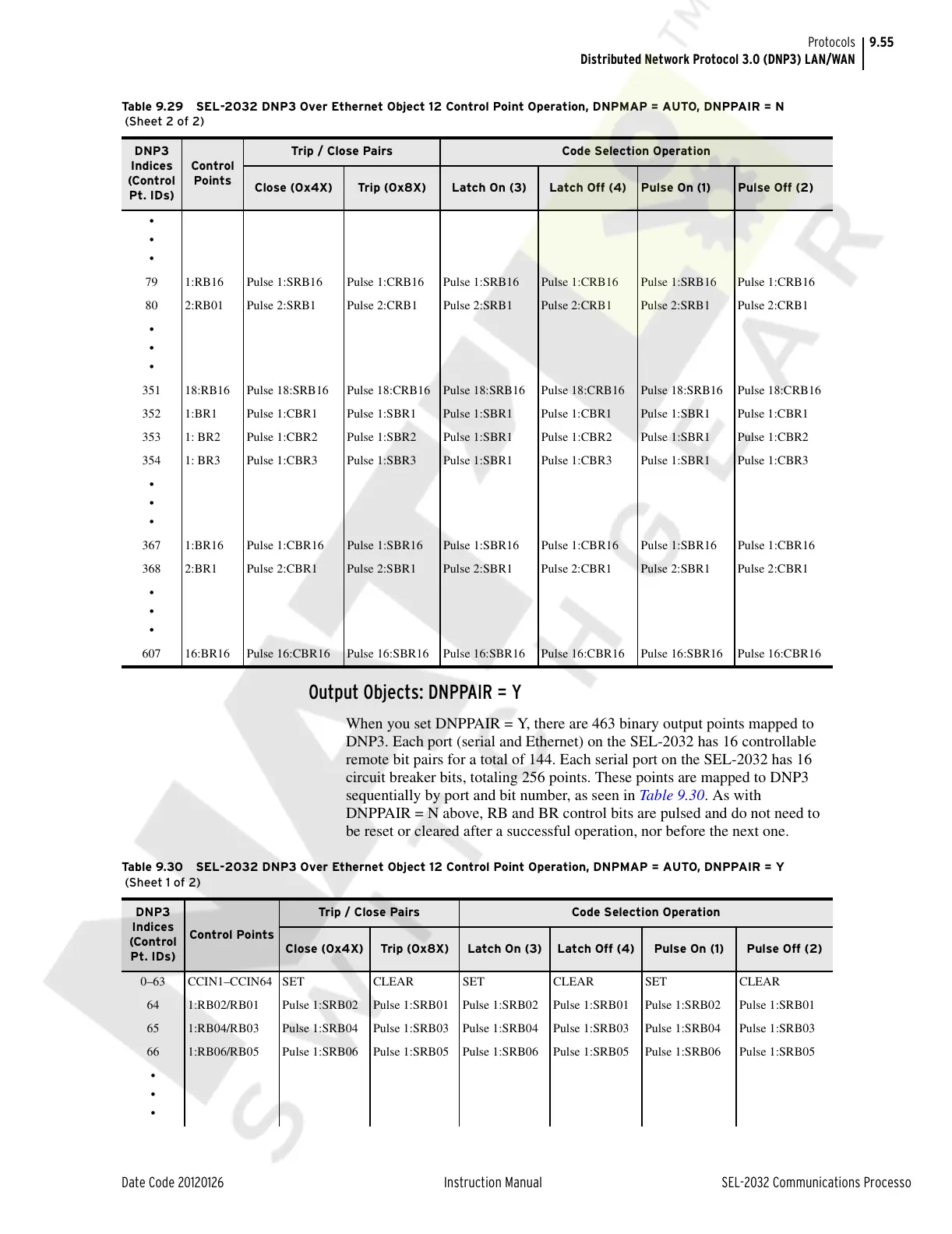

Table 9.29 SEL-2032 DNP3 Over Ethernet Object 12 Control Point Operation, DNPMAP = AUTO, DNPPAIR = N
(Sheet 2 of 2)
DNP3
Indices
(Control
Pt. IDs)
Control
Points
Trip / Close Pairs Code Selection Operation
Close (0x4X) Trip (0x8X) Latch On (3) Latch Off (4) Pulse On (1) Pulse Off (2)
Table 9.30 SEL-2032 DNP3 Over Ethernet Object 12 Control Point Operation, DNPMAP = AUTO, DNPPAIR = Y
(Sheet 1 of 2)
DNP3
Indices
(Control
Pt. IDs)
Control Points
Trip / Close Pairs Code Selection Operation
Close (0x4X) Trip (0x8X) Latch On (3) Latch Off (4) Pulse On (1) Pulse Off (2)
0–63 CCIN1–CCIN64 SET CLEAR SET CLEAR SET CLEAR
64 1:RB02/RB01 Pulse 1:SRB02 Pulse 1:SRB01 Pulse 1:SRB02 Pulse 1:SRB01 Pulse 1:SRB02 Pulse 1:SRB01
65 1:RB04/RB03 Pulse 1:SRB04 Pulse 1:SRB03 Pulse 1:SRB04 Pulse 1:SRB03 Pulse 1:SRB04 Pulse 1:SRB03
66 1:RB06/RB05 Pulse 1:SRB06 Pulse 1:SRB05 Pulse 1:SRB06 Pulse 1:SRB05 Pulse 1:SRB06 Pulse 1:SRB05
•
•
•
