4.3.73.5 GUARD FOR MILLING AT THE SPINDLE
(cu_4-3-73-5_0.0)
- Position the hood on the work table centring the reference pin (C fig. 4.3-73-5) in the through hole.
- Screw down the pin (D fig. 4.3-73-5).
DANGER-WARNING:
all adjusting operations are to be carried out with standstill spindle.
DANGER-WARNING:
before starting working manually turn the tool to make sure that there is no contact with the fixed
parts.

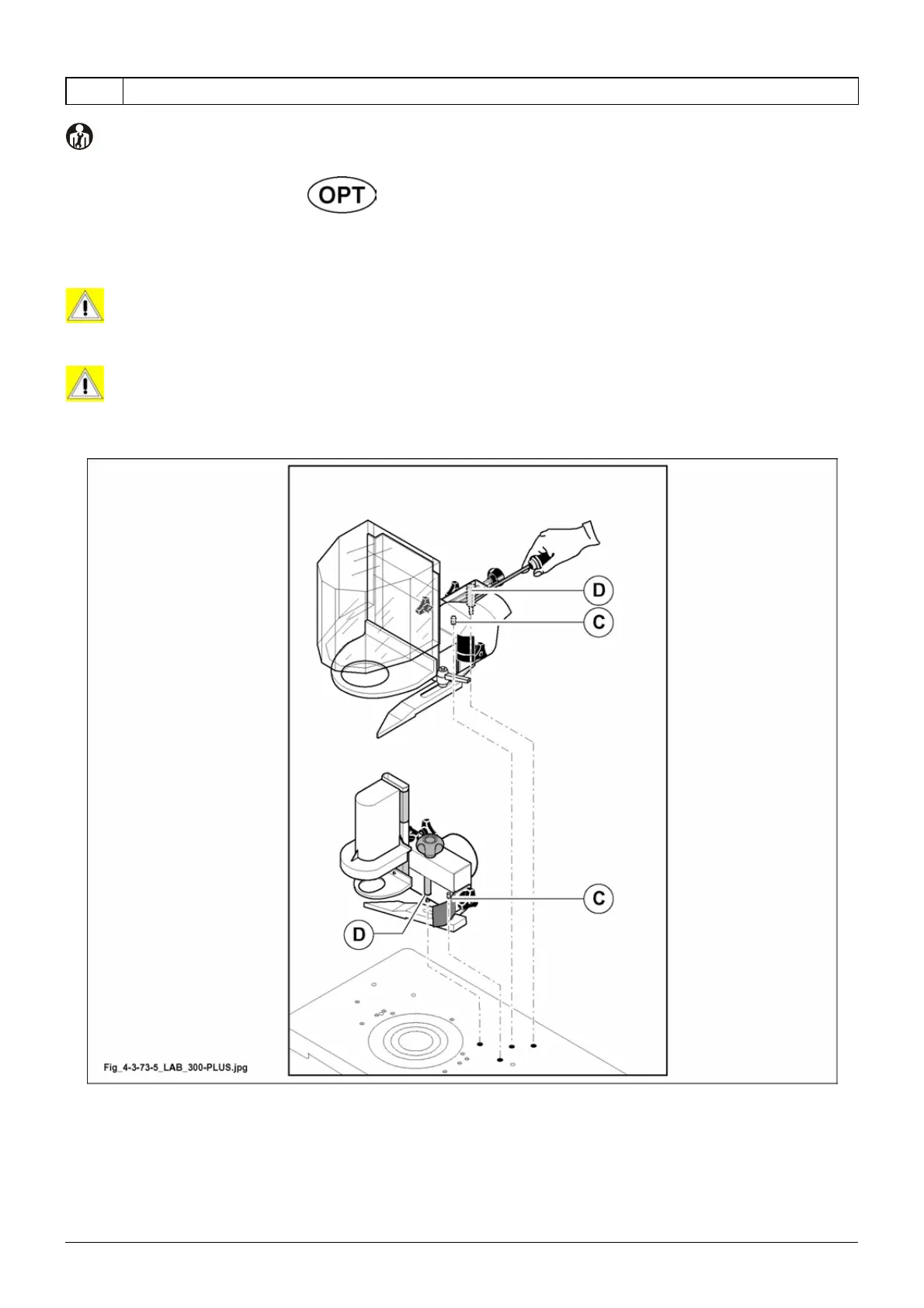

Fig. 4.3-73-5
