SAW / SAW - SPINDLE MOULDER
(titolo_sega)
4.3.1.1 TABLE SUPPORT DEVICE ASSEMBLY ON THE SLIDING
TABLE
(ev_4-3-1-1_0.0)

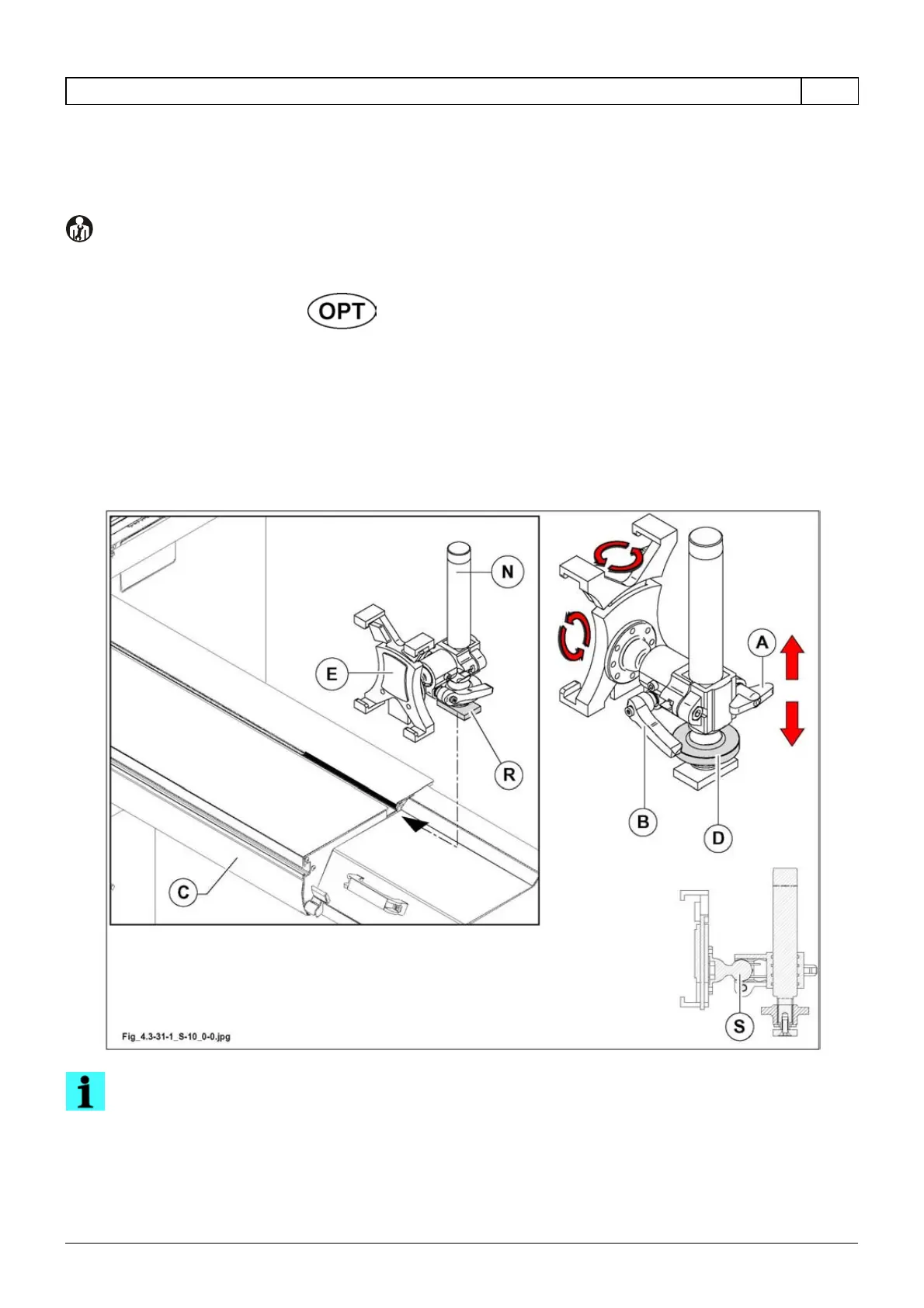

1) Install the column (N fig. 4.3-31-1) with the tablet support (E fig. 4.3-31-1) inserting the gib (R fig. 4.3-31-1) in
the groove of the sliding table (C fig. 4.3-31-1).
2) Use the washer handle (D fig. 4.3-31-1) to free the tablet support device and move it in the groove of the
sliding table to the desired position and block it.
3) Loosening the handle (B fig. 4.3-31-1) the ball joint is released (S fig. 4.3-31-1) so that you can adjust its
orientation.
4) Finally loosen the handle (A fig. 4.3-31-1), to move the tablet support device (E fig. 4.3-31-1) to the desired
height and then block it.
NOTE-INFORMATION:
to use the tablet support device (E) correctly refer to the attached manual.
