7 - SUPPORTING FRAME AND FENCE FOR PARALLEL CUTS: USE AND
ADJUSTMENT
EN
Pag. 2/26 - Cap. 7 THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
7.1.3 SPLINTER GUARD ADJUSTMENT
(par_7.1.3_2010)
You can trim the splinter guard a few times (K fig. 7.1-3), without having to move the entire support rule.
Loosen the screw (V fig. 7.1-3), slide the sprinter guard (K fig. 7.1-3) towards the blade, tighten the screw and
perform the trim again.
If you need to replace it see Section 20.

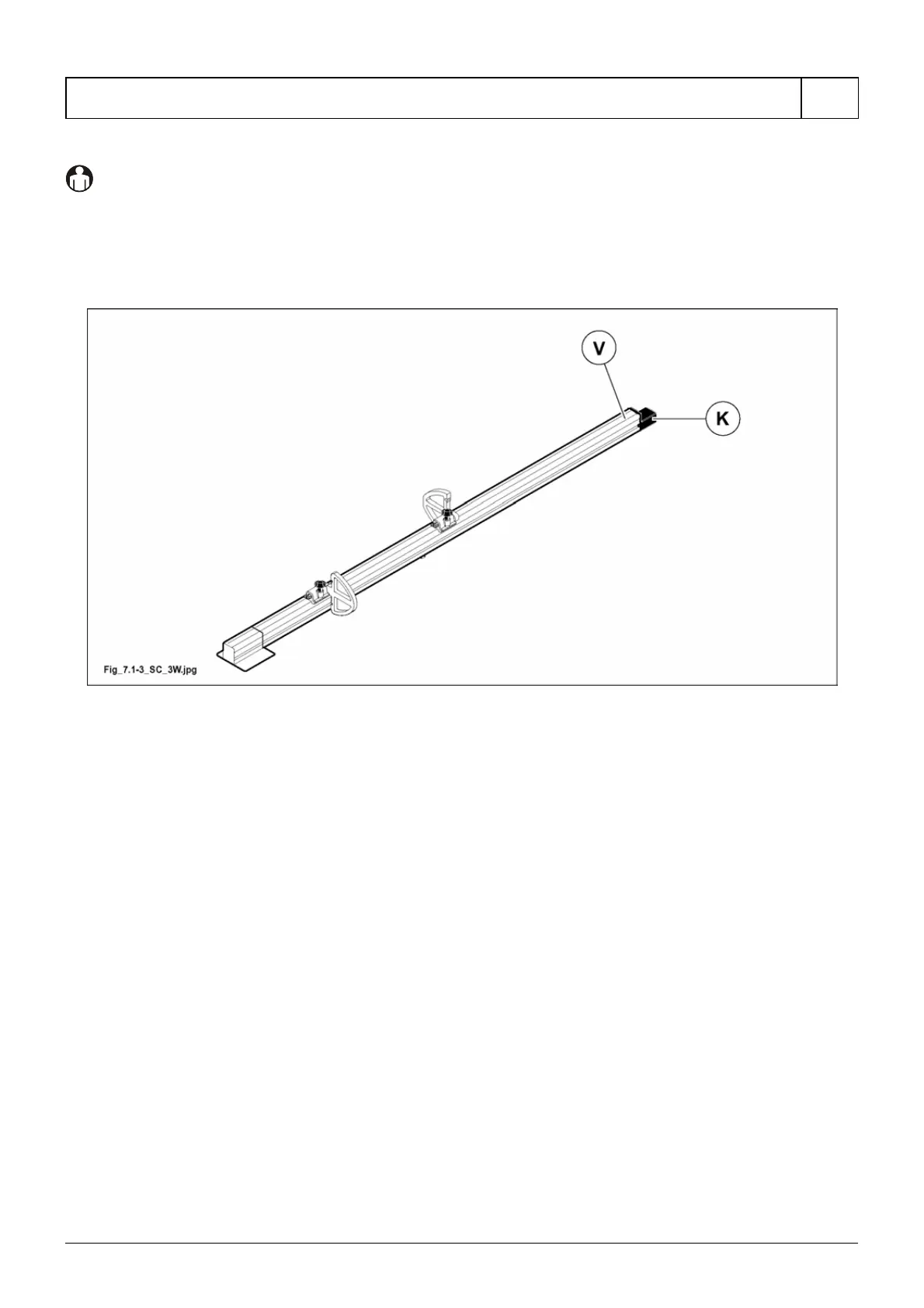

Fig. 7.1-3
