SCM CU 300C - Wagon Attachment - Installation

EN
4 - INSTALLATION
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 4 Pag. 19/53
4.3.31 WAGON ATTACHMENT - INSTALLATION
(mmax_4.3.31_0.0)
1) Mount the attachment (A fig. 4.3-31) inserting the gib (B fig. 4.3-31) in the groove of the wagon (C fig. 4.3-
31).
2) Tighten the lever (D fig. 4.3-31).
3) The table has already been adjusted; for further adjustments, act on the grub screws (E fig. 4.3-31)
(levelling) and the screw (F fig. 4.3-31) (positioning in height).

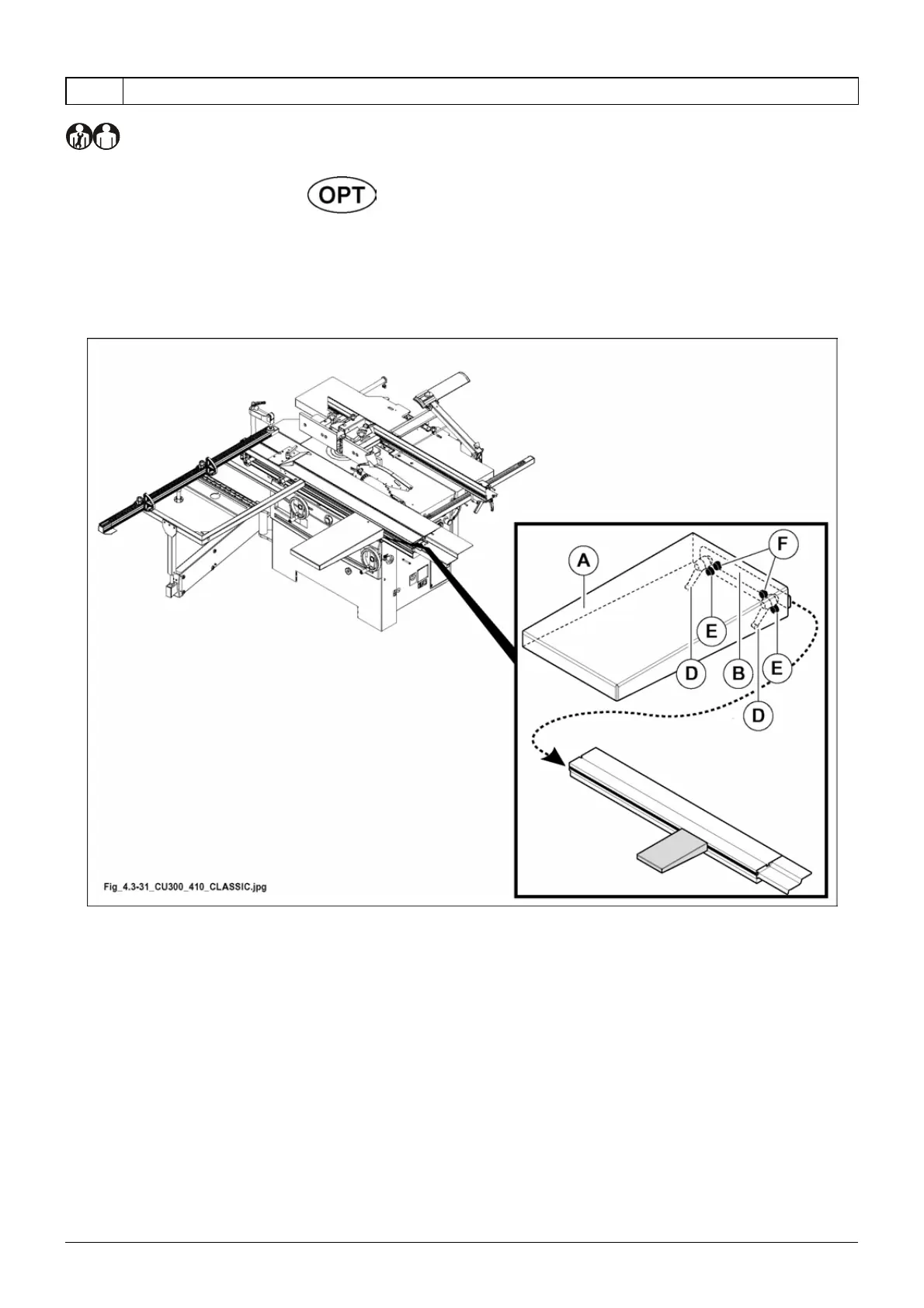

Fig. 4.3-31
