SCM CU 300C - Cut for Obtaining Pieces with Opposite Sides Parallel

EN
7 - SUPPORTING FRAME AND FENCE FOR PARALLEL CUTS: USE AND
ADJUSTMENT
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 7 Pag. 21/26
7.24.5 CUT FOR OBTAINING PIECES WITH OPPOSITE SIDES
PARALLEL
(ev_7-24-5_0.0)

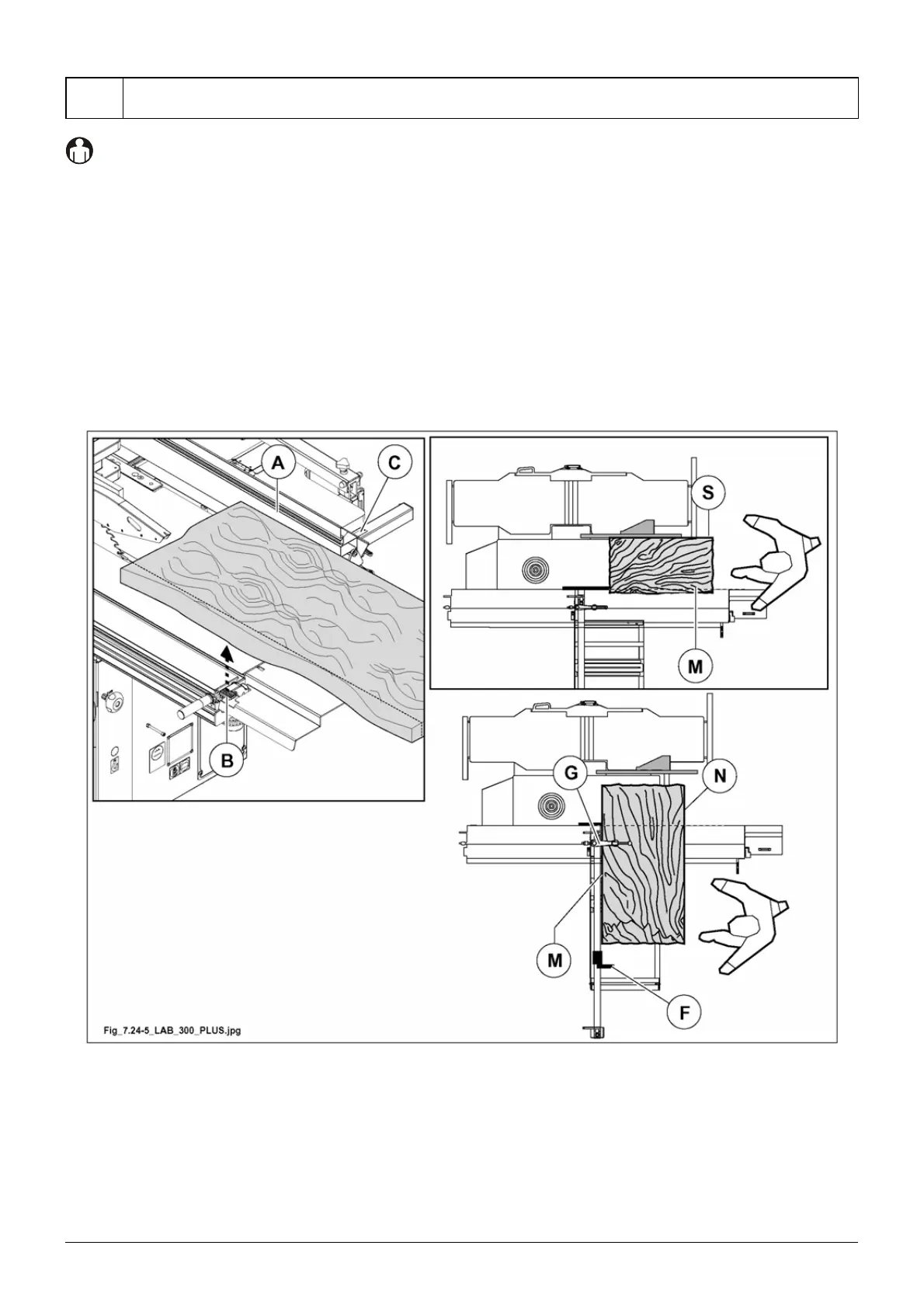

To perform parallel cuts use fence (A fig. 7.24-5). To position and adjust, follow the instructions in Par. 7.14.2.
Position the wagon as shown in (fig. 7.24-5) and lock it with the knob (B fig. 7.24-5).
For positioning the workpiece against fence (A fig. 7.24-5) refer to scale (C fig. 7.24-5).
- Carry out the trimming cut (S fig. 7.24-5) as in the previuos way (first cut).
- Then carry out the parallel cut (M fig. 7.24-5) by resting trimmed side (S fig. 7.24-5) against aluminium rule of
the saw carriage for parallel cut set to the measure required.
- Turn the panel 90° by resting trimmed side (M fig. 7.24-5) against rule; see fig. 7.24-5.
- Lock the panel by clamping device (G fig. 7.24-5) and carry out the third cut (N fig. 7.24-5).
- Turn the panel 180° by setting stop (F fig. 7.24-5) against trimmed side (N fig. 7.24-5) at the measure
required.
- After locking the panel with clamping device (G fig. 7.24-5) carry out the last cut.
Fig. 7.24-5
