SCM CU 300C - Rule adjusting for oblique cuts

7 - SUPPORTING FRAME AND FENCE FOR PARALLEL CUTS: USE AND
ADJUSTMENT
EN
Pag. 24/26 - Cap. 7 THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
7.24.6 RULE ADJUSTING FOR OBLIQUE CUTS
(hd_7.24.6_0.0)
- For oblique cuts, unscrew knobs (L fig. 7.24-6) to change position of rule (R fig. 7.24-6).
- For use, position the ruler referring to the plate (P fig. 7.24-6) and tighten the knobs (L fig. 7.24-6).
NOTE-INFORMATION:
the ruler is fitted with an extractable telescopic extension (H fig. 7.24-6), which may be lengthened
as required after loosening the knob (G fig. 7.24-6).
When the chip guard (M fig. 7.24-6) is worn, bring it up to the saw blade by loosening the grub
screw (N fig. 7.24-6).
The telescopic rule is supplied with the stops (B fig. 7.24-6). These can rapidly be positioned to rest on or
push the workpiece during machining, by simply tipping them over.

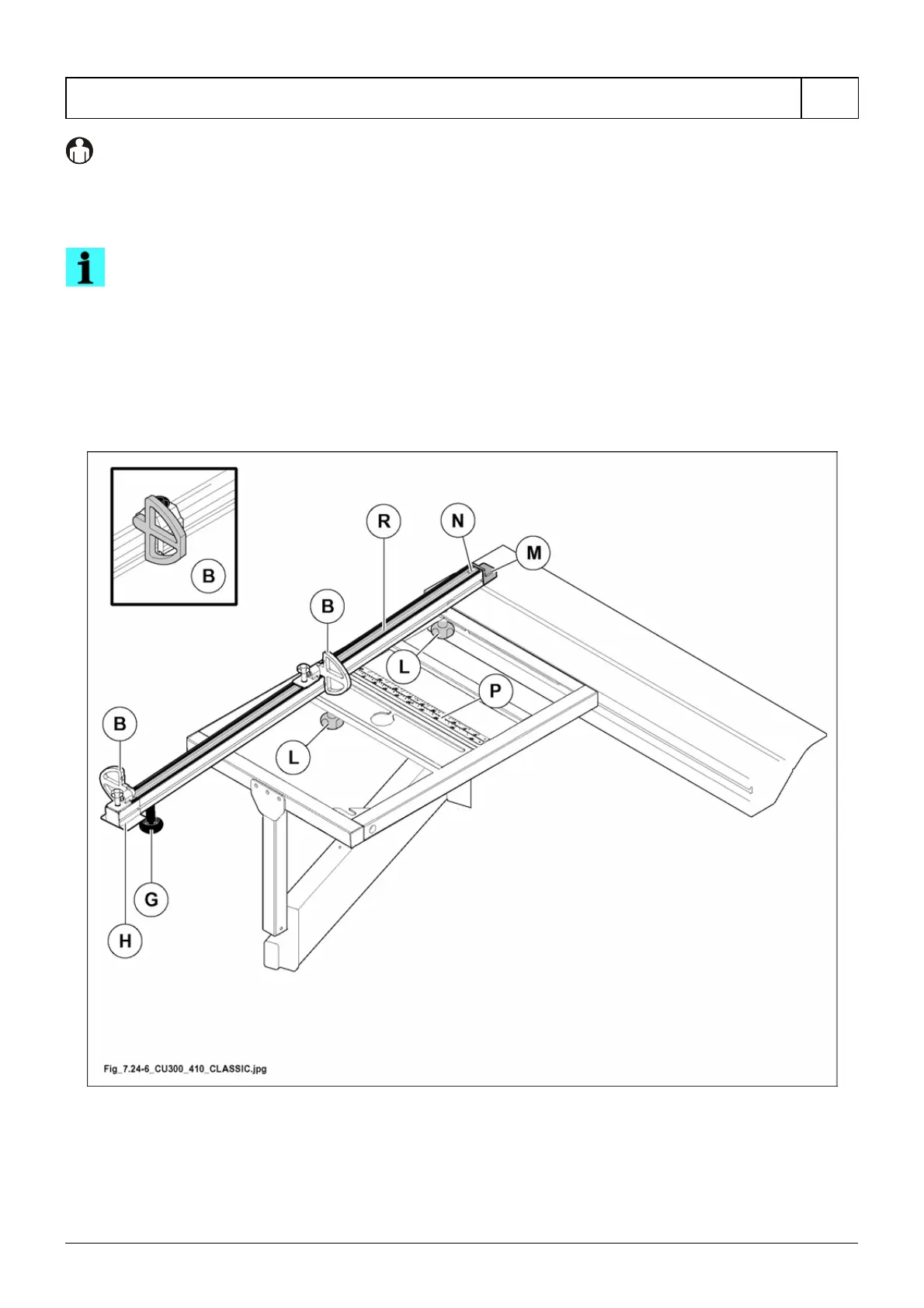

Fig. 7.24-6
