SCM CU 300C - Using the Tenoning Table

9a - OPERATIONS AND ADJUSTMENTS OF SPINDLE
EN
Pag. 12/45 - Cap. 9a THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
9A.8 USING THE TENONING TABLE
(cu_9a-8_0.0)
Tenoning is a head milling operation (against the grain) which is carried out to obtain joints between male tenons
(A fig. 9.8) and female tenons (B fig. 9.8).
Carry out this operation with sliding table after fitting additional table
(O fig. 9.8).
DANGER-WARNING:
tenoning must exclusively be carried out with a spindle rotation speed of 3500 rpm (50 Hz) - 4200
rpm (60 Hz).
For a better assembly:
- adjust the tenon depth 0,5 mm less than the jamb width (X fig. 9.8);
- adjust the slot depth 0,5 mm less than the crosspiece width (Y fig. 9.8).

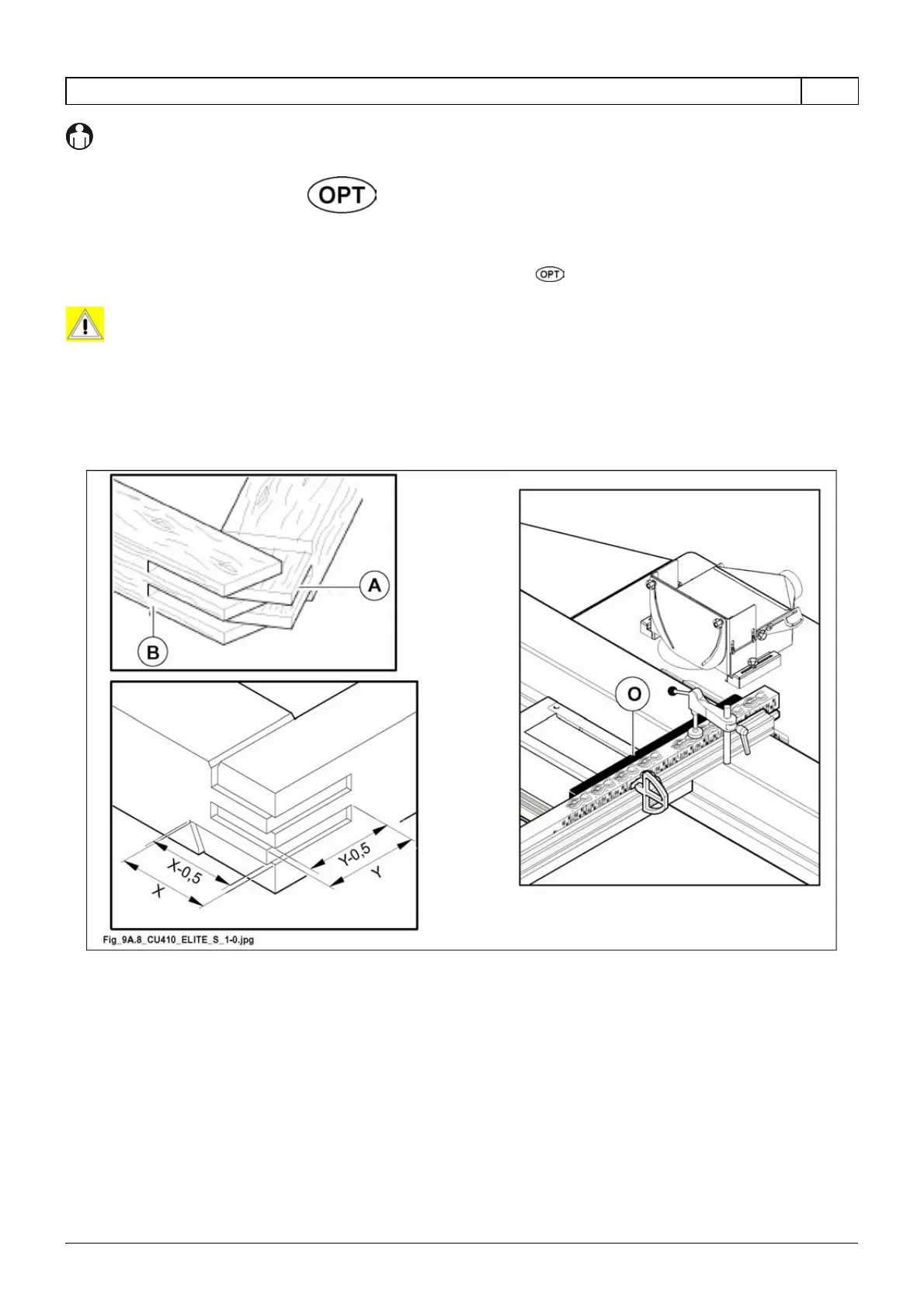

Fig. 9.8
