6 - SAW UNIT USE AND ADJUSTMENT
EN
Pag. 6/11 - Cap. 6 THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
6.3.4 SCORER ADJUSTING
(ev_6-3-4_0.0)
CAUTION:
for cutting panels coated with finishingmaterial you have to use the scorer (A fig. 6.3-4-1).
Position the scoring saw in order to have an engraving equal to 1-1,5 mm;
when it is not necessary to use the scorer, lower the scorer to the end of stroke under the table.
6.3.4.1 SCORER HEIGHT ADJUSTING
(gu_6-3-4-1_0.0)
Proceed as follows if it is necessary to adjust scorer positioning with respect to the saw:
- adjust scoring saw height using the knob (L fig. 6.3-4-1).
6.3.4.2 ALIGNING THE SCORER WITH THE SAW BLADE
(gu_6-3-4-2_0.0)
You have to carry out some cutting tests.
- Regulate the alignment of the scoring unit with the saw by turning the knob (N fig. 6.3-4-1).

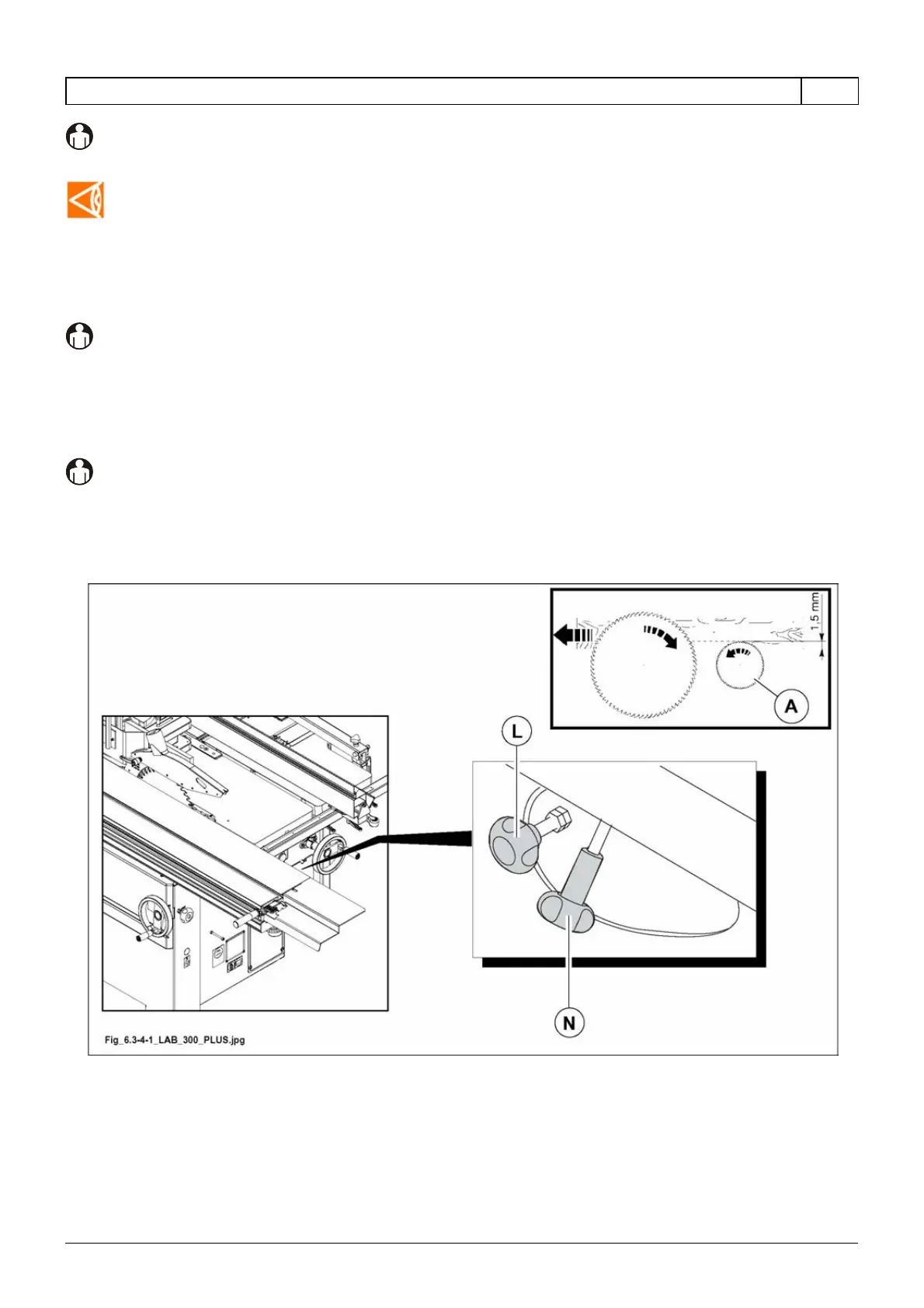

Fig. 6.3-4-1
