9a - OPERATIONS AND ADJUSTMENTS OF SPINDLE
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 9a Pag. 21/45
9A.33.1 ADJUST SPINDLE MOULDER HOOD GUIDE FOR
MOULDING WITHOUT REMOVAL
(cu_9a-33-1_0.0)
Simultaneous adjustment of the guides A and B (fig. 9.33-1).
- Adjust fence (A fig. 9.33-1) by means of knob (E fig. 9.33-1) after loosening knob (C fig. 9.33-1).
- Adjust fence (B fig. 9.33-1) by means of knob (E fig. 9.33-1) after loosening knob (G fig. 9.33-1).
- The fence halves (A and B fig. 9.33-1) must be as near the tool as possible (about 2-3 mm). To make this
adjustment loosen handles (D fig. 9.33-1) behind the fence halves.
NOTE-INFORMATION:
for this operation the fence halves shall be aligned with one another.
Read the deviation between the two tables on index (H fig. 9.33-1). When the index is positioned on
"0", the fences are aligned.
- When the adjustment has been carried out, tighten the knobs C and G (fig. 9.33-1).

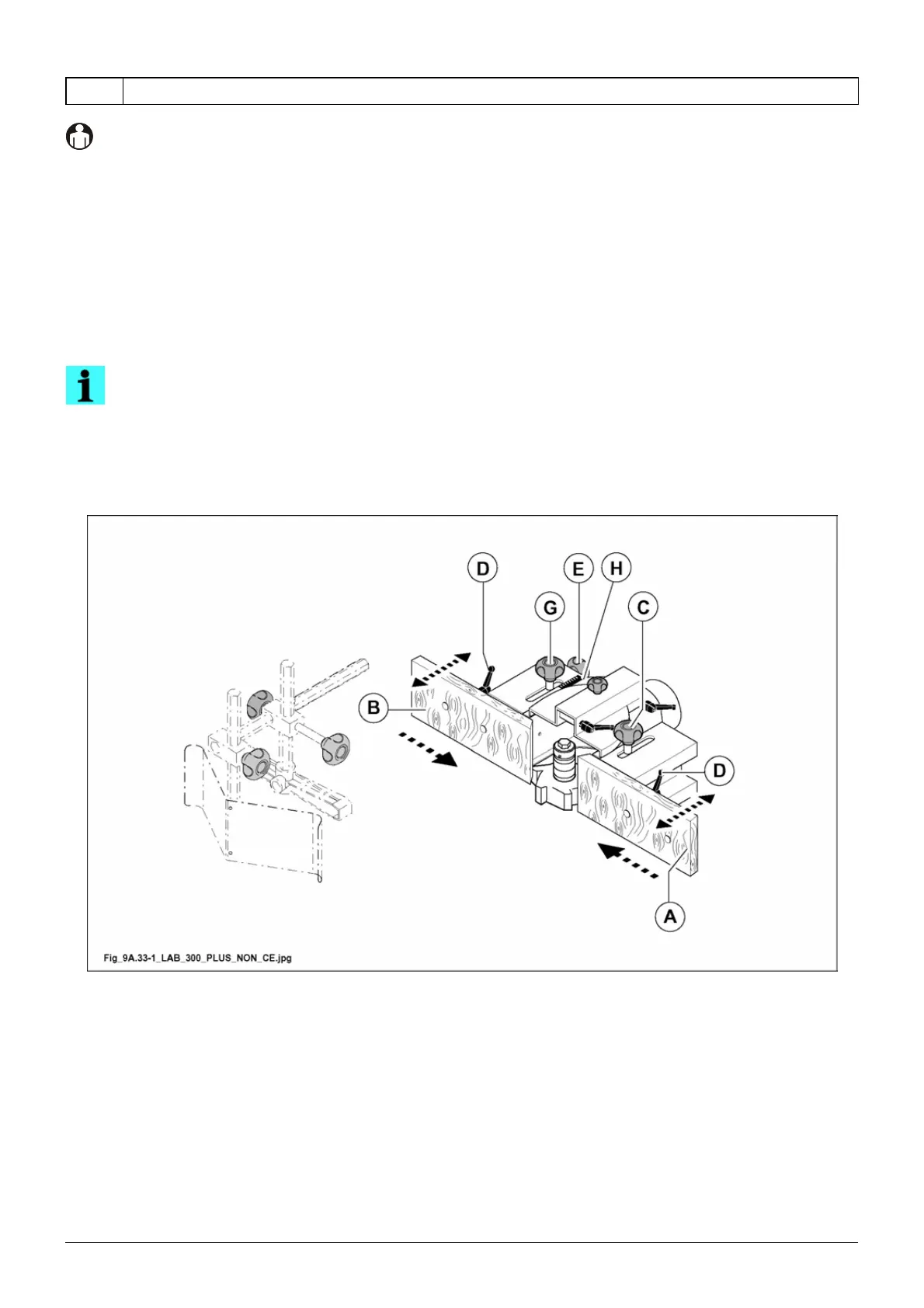

Fig. 9.33-1
