9a - OPERATIONS AND ADJUSTMENTS OF SPINDLE
EN
Pag. 20/45 - Cap. 9a THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
SPINDLE HOOD PRESSERS EXCLUSION
NOTE-INFORMATION:
device present only if the setup to install the feed unit (see Appendix - A) is requested.
DANGER-WARNING:
for safety reasons the pressers must be moved from their work position to a non-work position,
where they are still connected to the machine but they don't interfere with the tool change or with
the use of a feed unit.

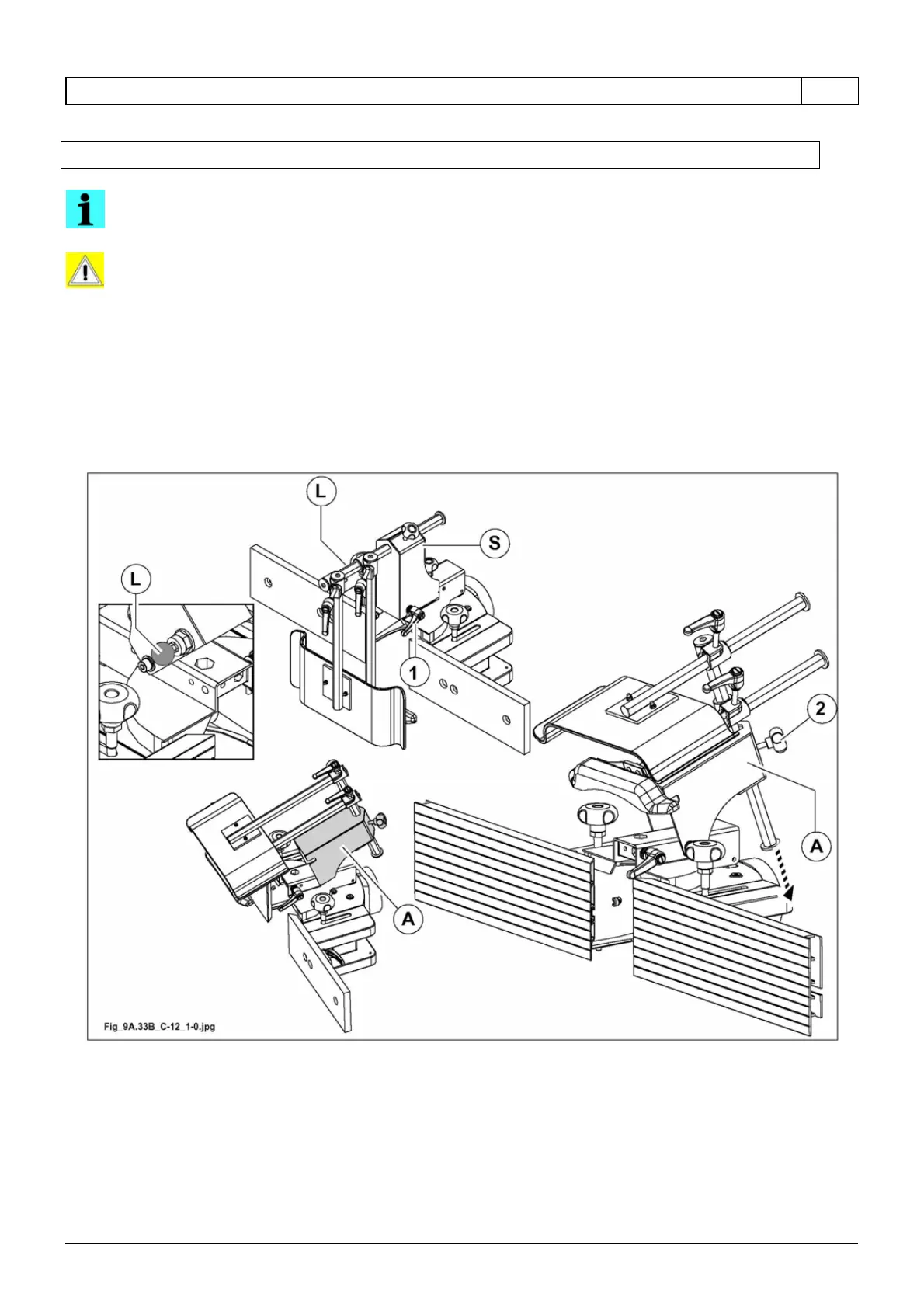

To exclude the pressers unit proceed as follows:
- loosen the handle (1)
- pull the knob (L) and exclude the pressers unit by rotating the support (S) to the completely open position (A)
- finally move the pressers close to the support (S) loosening the knob (2) and sliding the hexagonal bar as
indicated in figure. Once the movement is completed, tighten the knob (2).
