SCM CU 300C - Fitting the Additional Tables; Fitting the Additional Table at Exit Side

4 - INSTALLATION
EN
Pag. 14/53 - Cap. 4 THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
4.3.14 FITTING THE ADDITIONAL TABLES
(ev_4-3-14_0.0)
DANGER-WARNING:
all fitting and demounting operations require 2 persons.
4.3.14.2 FITTING THE ADDITIONAL TABLE AT EXIT SIDE
(ev_4-3-14-2_0.0)

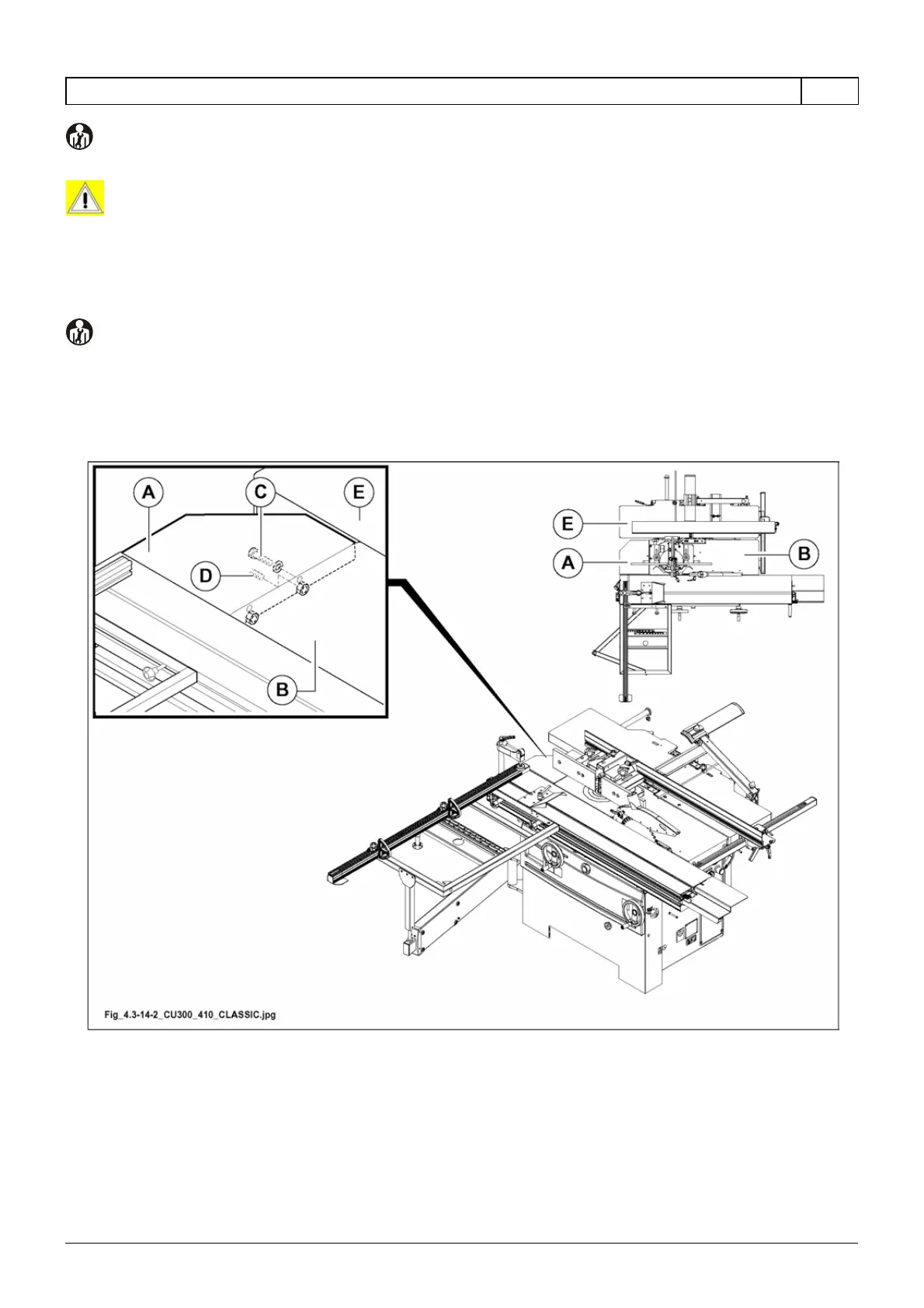

Fix additional table (A fig. 4.3-14-2) to table (B fig. 4.3-14-2) with screws (C fig. 4.3-14-2) and align the additional
table to the table (B, E fig. 4.3-14-2) by means of grub screws (D fig. 4.3-14-2) (check the alignement with a proper
rule).
Fig. 4.3-14-2
