EN
7a - SURFACER USE AND ADJUSTING
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 7a Pag. 11/15
7A.6.2 OUTLET TABLE
(fs_7-6-2_0.0)
NOTE-INFORMATION:

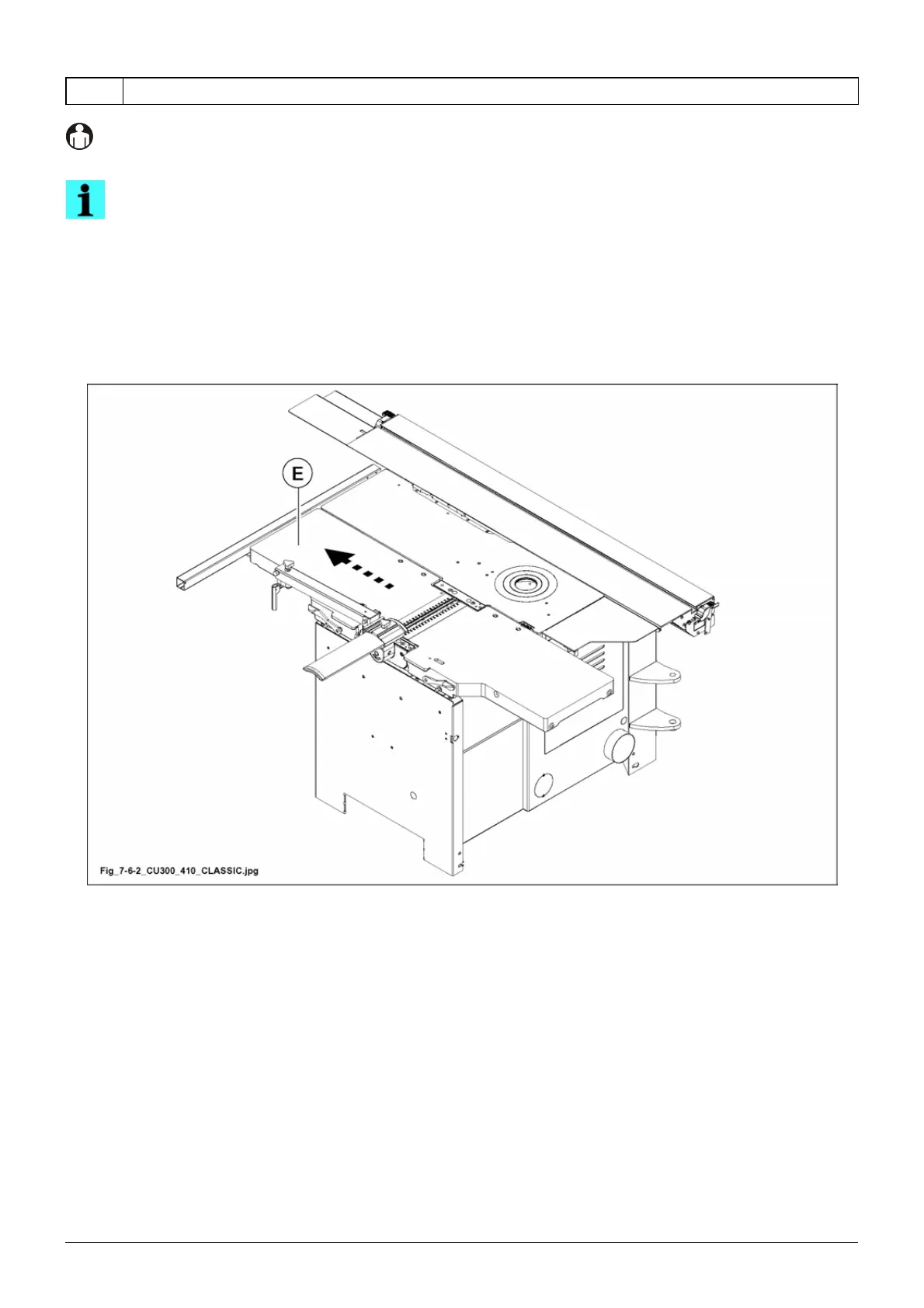

the outfeed table (E fig. 7.6-2) is positioned level to the cutter block knife and does not need to be
adjusted.
The table has been adjusted at factory during the machine test.
To make sure it is correct, place a well planed workpiece between the surface and the cutterblock; manually turn
the cutterblock and make sure the cutters skim the workpiece.
Fig. 7.6-2
