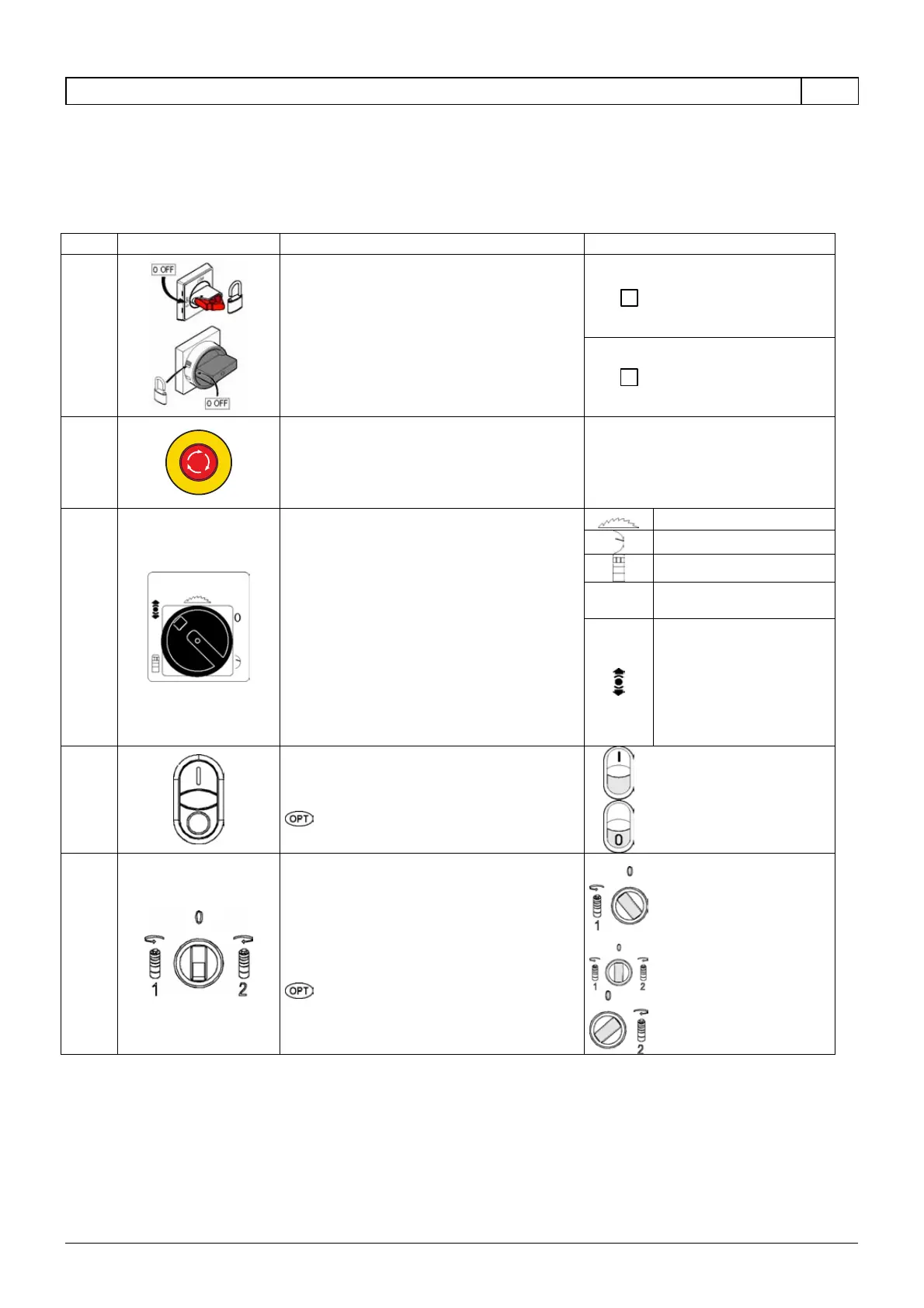

5.1 CONTROLS BOARD
(ev_5-1_0.0)
The control board depends on the machine version:
Ref. Image Function Use
I
ON
= the units are
powered.
1
Thermal sw
itch
It connects and disconnects the supply
voltage to the working units.
O
OFF
= the units stop.
2
Emergency button.
To shut off the motor supply voltage with
intervention of the brakes when present.
Pressed: machine in emergency
conditions.
Turn to the arrow direction to
res
et.
saw assembly powered
planer unit powered
moulder unit powered
“0”
working unit
disconnected
3
5-positions selector switch.
It operates and stops the motor of the
selected working unit.
(U.S.A. and CANADA
v
ersion):
disables the operating
units and releases the
motor brake turning the
selector (Ref. 1 to
position “I”.
Pres
s to start motor.
4
Start/stop button.
P
ress to stop motor.
To select the
counterclock-wise
rotation of the spindle
(normal direction of
rotation).
Spindle moulder motor
disenabled.
5
3-position selector to select the spindle
rotation direction.
To select the clockwise
rotation (pilot lamp lit).
Dangerous rotation.
