9a - OPERATIONS AND ADJUSTMENTS OF SPINDLE
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 9a Pag. 41/45
9A.55.2 ADJUSTING
(cu_9a-55-2_0.0)
DANGER-WARNING:
all adjusting operations are to be carried out with standstill spindle.

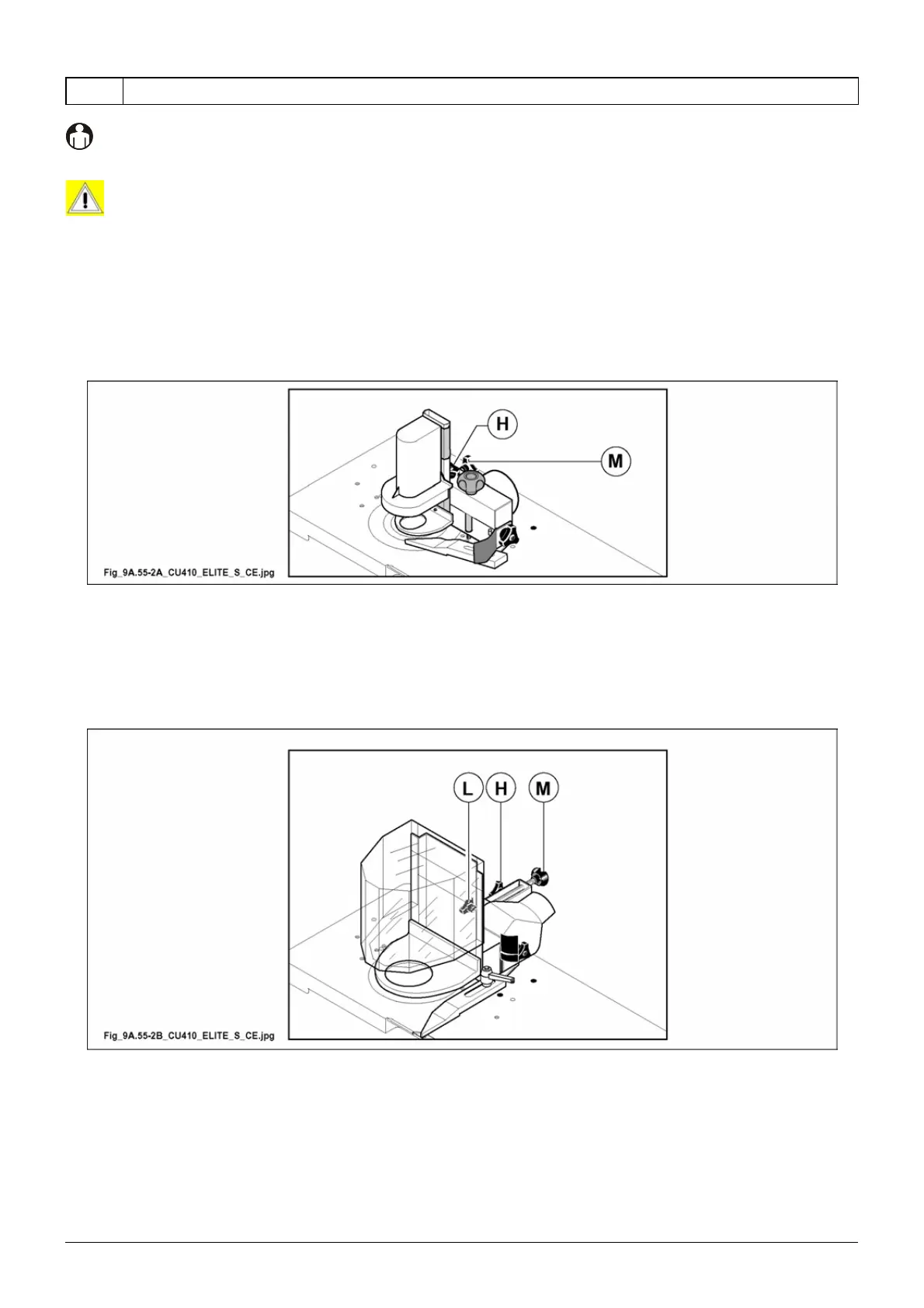

WORKING DEPTH
Version for spindles with max. 30 / 35 mm diameter
- loosen the knob (H fig. 9.55-2A) and act on the knob (M fig. 9.55-2A) to make micrometric adjustments;
- tighten the knob (H fig. 9.55-2A).
Fig. 9.55-2A
Version for spindles with max. 40 / 50 mm diameter
- loosen the knobs (H fig. 9.55-2B) and (L fig. 9.55-2B) and manually translate the hood in the desired
position;
- tighten the knob (H fig. 9.55-2B) and turn the knob (M fig. 9.55-2B) to do the micrometric adjustment;
- tighten the knob (L fig. 9.55-2B).
Fig. 9.55-2B
