SCM CU 300C - Surfacing tables adjusting

7a - SURFACER USE AND ADJUSTING
EN
Pag. 10/15 - Cap. 7a THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
7A.6 SURFACING TABLES ADJUSTING
(fs_7-6_0.0)
DANGER-WARNING
do not move the inlet table when the cutterblock is rotating.
DANGER-WARNING
before moving the inlet table, make sure that no object is between the inlet table and the fence.
7A.6.1 INLET TABLE
(fs_7-6-1_0.0)

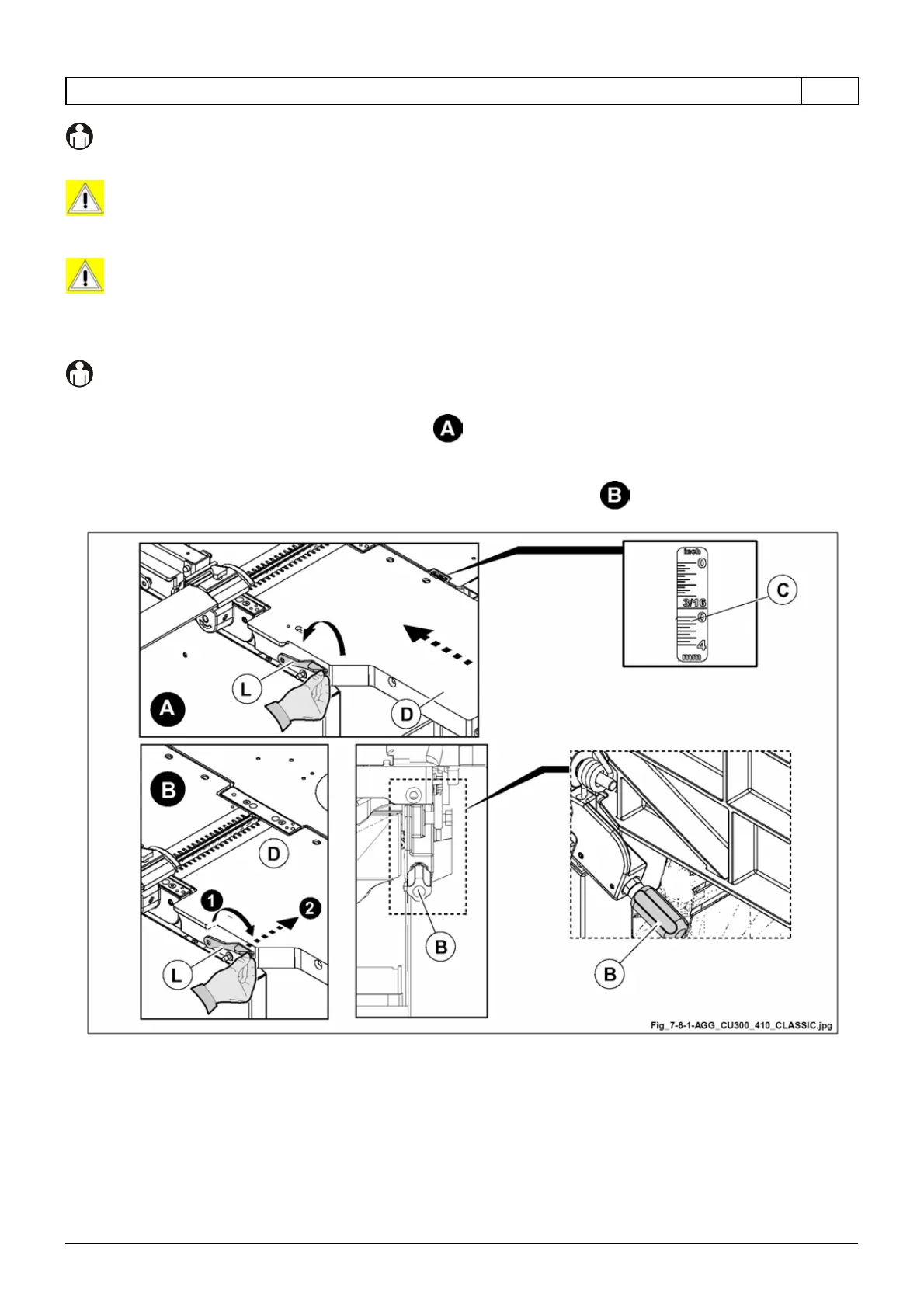

- Slacken the lever (L fig. 7.6-1) as shown in figure .
- Operate on the handle (B fig. 7.6-1) in order to place the table (D fig. 7.6-1) depending on the chosen removal:
read the traverse on the data plate (C fig. 7.6-1).
Turn and push the lever (L fig. 7.6-1) to lock table (D fig. 7.6-1) (see figure
).
Fig. 7.6-1
